 Note
| The separating and connecting procedures are described for
the left side of the vehicle. The separating and connecting
procedures on the right side are analogous. |
|
|
|
| – |
Fold down rear seat backrest. |
| – |

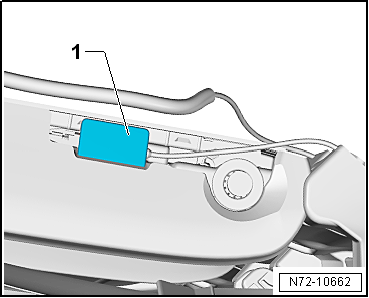

Unclip cover -1- from rear seat
backrest. |
|
|
|
| – |

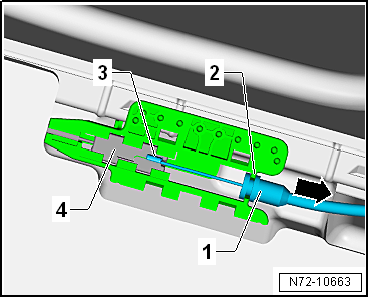

Pull Bowden cable -1- out of
cable support bracket -2-. |
| – |
Remove pin -3- of Bowden cable
from mounting -4- in connecting
piece. |
| – |
Thread Bowden cable -1- out of
rear seat backrest -arrow-. |
|
|
|
| The Bowden cables are connected in reverse order. Observe
the following while doing so: |
Note
| The backrest cover must be secured all-round by cover
-1-. |
|
|
|
Questions & answers
Separating and connecting Bowden cable for remote release mechanism for seat backrest — Volkswagen Golf Mk7
How do I separate the Golf Mk7 rear backrest remote release Bowden cable?
Left side described. Disconnect the cable at its junction point, noting the routing for reconnection.
Special tools and workshop equipment
required
Torque wrench -V.A.G 1410-
...
Note
Removal and installation are described for the left vehicle side.
Follow same instructions for the right side as appropriate.
Removing
–&nb ...
