Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing door arrester

Using torque wrench -V.A.G 1331-, this page covers removing the Volkswagen Golf Mk7 door arrester (check strap), described for the left side — starting with removing the front door trim and the self-adhesive insulation panel behind it.

Special tools and workshop equipment required


  Note
The description of removal and installation only applies to the left wing. The right side is similar.
Removing


Torque wrench -V.A.G 1331-
 Torque wrench -V.A.G 1331-

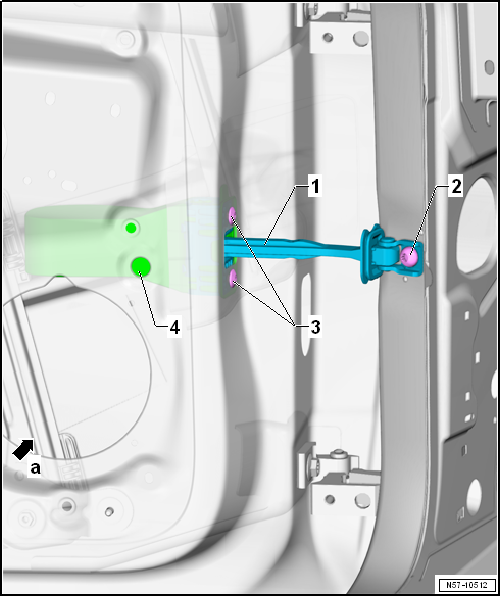

Removing and installing door arrester

–  Remove front door trim → General body repairs, interior; Rep. gr.70.
–  Remove self-adhesive cover or front loudspeaker → Communication; Rep. gr.91.
–  Unscrew bolt -2- in A-pillar.
–  Unscrew bolts -3- and remove door arrester -1- through the opening of the loudspeaker -arrow a-.


Installing


Removing and installing door arrester

Install in reverse order of removal.
Specified torques
Door arrester → Chapter „Assembly overview - door“

    Questions & answers

    Removing and installing door arrester — Volkswagen Golf Mk7

    What is the Golf Mk7 door arrester?
    A check strap that limits how far the door can swing open and holds it in intermediate positions. It prevents the door from hitting adjacent vehicles or walls.
    How do I remove the Golf Mk7 door arrester?
    Remove the front door trim and inner protective film, unbolt the arrester from the door body and the B-pillar, and withdraw it.
