Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing speed sensors on front axle -G45-/-G47

Note: described for the front left sensor -G45-; the right sensor -G47- is analogous. This page covers removing Volkswagen Golf Mk7 front ABS speed sensors — raise the vehicle and disconnect the connector.

  Note
Removal and installation is described for the front left speed sensor. Removal and installation of the front right speed sensor is analogous.
Removing
–  Raise vehicle.

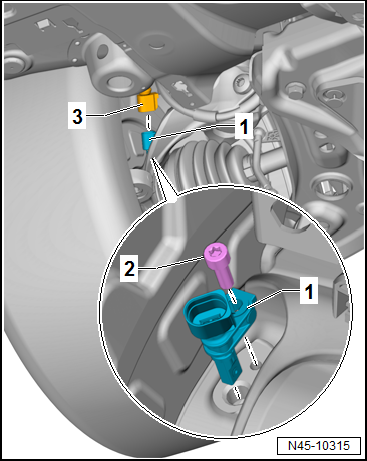

–  Disconnect connector -3- from front left speed sensor -G47--1-.
–  Unscrew bolt -2-, and pull front left speed sensor -G47--1- out of wheel bearing housing.
Installing
Install in reverse order of removal, observing the following:
–  Clean inside surface of hole before inserting speed sensor.
–  Coat speed sensor all-round with high-temperature paste G 052 112 A3.
Specified torque
→ Chapter „Assembly overview - speed sensor on front axle“


Removing and installing speed sensors on front axle -G45-/-G47
