| The connecting pipe can be cut through at the cutting point
in order to renew the centre and rear silencers separately. |

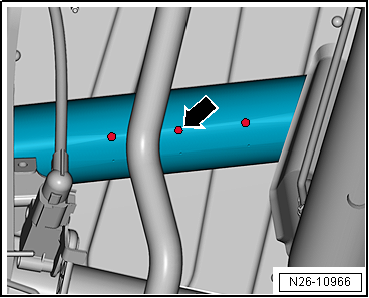

| Cutting point is marked by an indentation on circumference
of exhaust pipe. |
| Special tools and workshop equipment
required |
|
|
|
| Chain-type pipe cutter -VAS 6254- |
|
|
|
| – |
Cut through exhaust pipe at right angles at cutting point
-arrows- using chain pipe cutter
-VAS 6254-. |
|
|
|
| – |

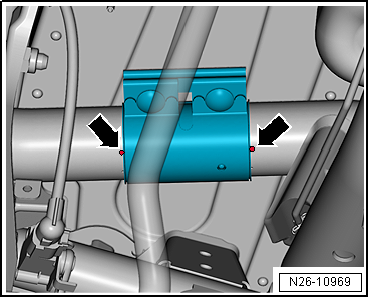

Position clamp centrally at side marks
-arrows- when installing. |
|
|
|
Questions & answers
Vehicles with multilink suspension — Volkswagen Golf Mk7
How do I install the Golf Mk7 1.4 TSI exhaust (multilink)?
Same as torsion beam but verify clearance to multilink arms before final tightening.
The connecting pipe can be cut through at the cutting point
in order to renew the centre and rear silencers separately.
Cutting point is marked ...
Procedure
The exhaust system must be aligned when cold.
Note
The -arrow- points forwards.
...
