Volkswagen Golf Mk7 Service & Repair Manual: Connecting brake pedal to brake servo

This page covers reconnecting the Volkswagen Golf Mk7 brake pedal to its servo — hold the plunger rod's ball head in front of the mounting and push until it clicks into place, then verify by pulling the pedal.

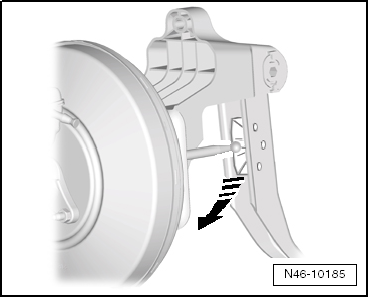

  Hold ball head of plunger rod in front of mounting and push brake pedal in direction of brake servo, so that the ball head clicks into place.
–  Check engagement by pulling briefly on brake pedal.
Continue installation in reverse order.


Connecting brake pedal to brake servo

    Questions & answers

    Connecting brake pedal to brake servo — Volkswagen Golf Mk7

    How do I reconnect the Golf Mk7 brake pedal to the servo?
    Align the pushrod with the pedal lever, insert the clevis pin and secure with a new retaining clip. Check pedal free play.
    Separating brake pedal from brake servo
    Special tools and workshop equipment required     Release tool -T10159B- –  ...

    Removing and installing brake pedal
    It is not possible to remove the brake pedal separately. –  To be able to remove it, pedal cluster/mounting bracket needs to be removed ...
