| 1 - |
Hexagon socket head bolt |
| Left parking brake motor -V282-, fitting location: on rear left
brake caliper |
| Right parking brake motor -V283-, fitting location: on rear right
brake caliper |
| Removing and installing
→ Chapter |
| 3 - |
Control unit for electromechanical parking brake -J540- |
| Integrated into ABS control unit -J104- and cannot be renewed
individually |
| Removing and installing ABS control unit -J104-
→ Chapter |
| 4 - |
Auto-hold button -E540- |
| With auto-hold warning lamp -K237- |
| Location: in centre console. |
| Removing and installing
→ Electrical system; Rep. gr.96 |
| 5 - |
Electromechanical parking brake button -E538- |
| With electromechanical parking brake warning lamp -K213- |
| Location: in centre console. |
| Removing and installing
→ Electrical system; Rep. gr.96 |
| With brake system warning lamp -K118- |
| With electric parking brake and handbrake fault warning lamp -K214- |
Removing and installing control unit for electromechanical parking brake
-J540-
| The control unit for electromechanical parking brake -J540-
is integrated into the ABS control unit -J104- and cannot be
renewed individually. |
| – |
Removing and installing ABS control unit -J104-
→ Chapter. |
|
|
|
Questions & answers

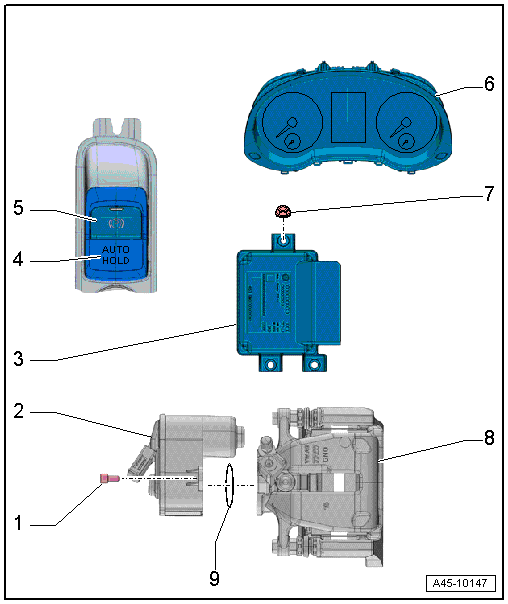

Overview of fitting locations - parking brake — Volkswagen Golf Mk7
Where are the Golf Mk7 EPB components?
The EPB motor is integrated into each rear caliper. The control unit is in the ABS/ESC module. The operating button is in the centre console.
