Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing rear 3-point seat belt, 2-door model, without belt tensioner

This page covers removing the 2-door Volkswagen Golf Mk7 rear seat belt without a tensioner — remove the rear shelf support and outer belt guide anchor first, then the inertia reel.

Removing
–  Remove rear shelf support → Chapter.
–  Remove outer rear seat belt guide anchor → Chapter.

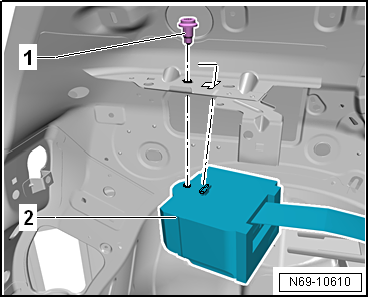

–  Remove bolt -1-.
–  Remove belt inertia reel -2- from mounting.
Installing
Install in reverse order, but note the following:
–  If parts of the belt system are removed because of an accident, the belt system bolts must be renewed.
Specified torques
  → Chapter „Assembly overview - three-point seat belt, 2-door model, without belt tensioner“


Removing and installing rear 3-point seat belt, 2-door model, without belt tensioner

    Questions & answers

    Removing and installing rear 3-point seat belt, 2-door model, without belt tensioner — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 2-door rear belt (no tensioner)?
    Remove the rear shelf support, outer belt guide anchor, unbolt the inertia reel and belt end fitting.
