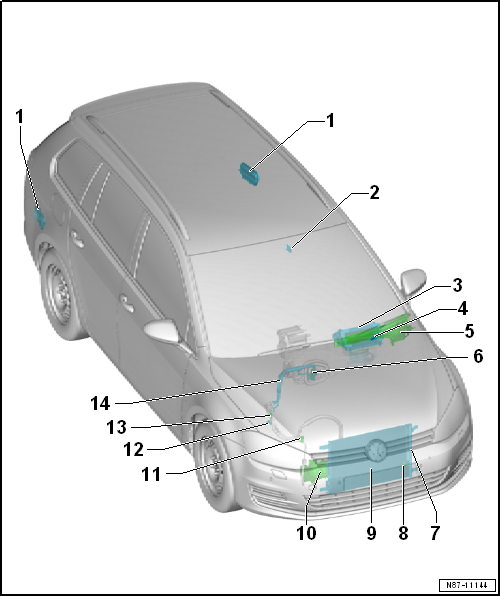

Volkswagen Golf Mk7 Service & Repair Manual: Overview of fitting locations - components not located in passenger compartment, Golf Variant RHD

This overview maps Golf Variant RHD AC components outside the cabin: exhaust ventilation and the humidity sender -G260-.

1 -	Exhaust ventilation for passenger compartment

Checking → Chapter

Removing and installing → Chapter

2 -	Humidity sender for air conditioning system -G260-

Check via onboard supply control unit -J519-vehicle diagnostic tester in “Guided fault finding” mode and → Current flow diagrams, Electrical fault finding and Fitting locations

Removing and installing → Chapter

3 -	Fresh air intake

Removing and installing → Chapter

4 -	Air quality sensor -G238-

Check using vehicle diagnostic tester in “Guided fault finding” mode and → Current flow diagrams, Electrical fault finding and Fitting locations

Removing and installing → Chapter

Principles of operation → Chapter

Only on vehicles with Climatronic.

5 -	Cover for fresh air intake duct

Removing and installing → Chapter

6 -	Expansion valve

Removing and installing → Chapter

Specified torques → Chapter

7 -	Desiccant bag

Removing and installing → Chapter

Assembly overview → Chapter

8 -	Ambient temperature sensor -G17-

Check via onboard supply control unit -J519-vehicle diagnostic tester in “Guided fault finding” mode and → Current flow diagrams, Electrical fault finding and Fitting locations

Removing and installing → Chapter

9 -

Condenser

With integrated receiver

Assembly overview → Chapter

Removing and installing → Chapter

  Note

Under certain conditions, it is not necessary to renew the receiver with desiccant bag every time that the refrigerant circuit is opened. Refer to ELSA under Heating, ventilation, air conditioning system; Air conditioning system with refrigerant R134a → Air conditioning system with refrigerant R134a; Rep. gr.00.

10 -	Air conditioner compressor

Assembly overview → Chapter

Removing and installing → Chapter

Removing from and installing on bracket → Chapter

11 -	Evacuating and charging valve, high-pressure side

Removing and installing → Chapter

12 -	Pressure sender for refrigerant circuit -G805-

8 Nm

Checking: Use vehicle diagnostic tester in “Guided fault finding” mode and → Current flow diagrams, Electrical fault finding and Fitting locations

Removing and installing → Chapter

13 -	Evacuating and charging valve, low-pressure side

Removing and installing → Chapter

14 -	Refrigerant line with internal heat exchanger

From condenser and air conditioner compressor

Removing and installing → Chapter
