Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - toothed belt cover

This assembly overview covers the Volkswagen Golf Mk7 toothed belt covers: the lower guard, an 8 Nm bolt, the engine support with its own tightening sequence, and the upper guard.

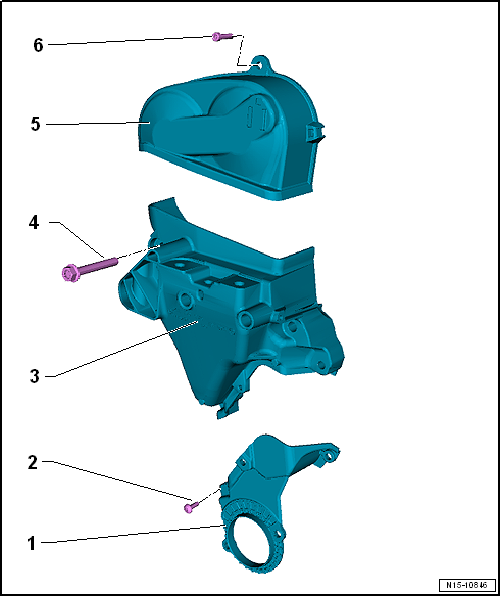

Assembly overview - toothed belt cover

1 -  Lower toothed belt guard
2 -  Bolt
8 Nm
3 -  Engine support
Specified torque and tightening sequence → Fig.
4 -  Bolt
Specified torque and tightening sequence → Fig.
5 -  Upper toothed belt guard
6 -  Bolt
8 Nm
