| Special tools and workshop equipment
required |
|
|
|
| |
|

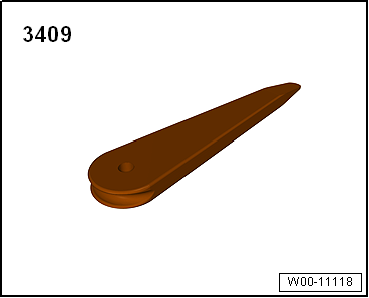

Removal wedge -3409- |
| – |

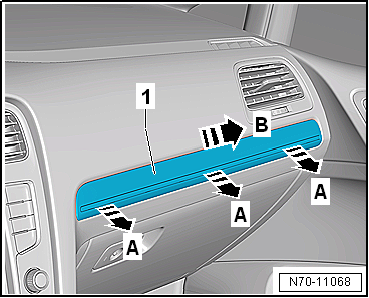

Release trim panel -1- from
catches -arrows A- using removal
wedge -3409-. |
| – |
Then, move trim panel -1-
outwards -arrow B- and remove it. |
 Note
| Before installing, check all fasteners for damage and renew
if necessary. |
| Installation is carried out in reverse order. |
|
|
|
