Remove backrest cover with backrest padding from rear seat
backrest
→ Chapter. |
|
|
|
| – |

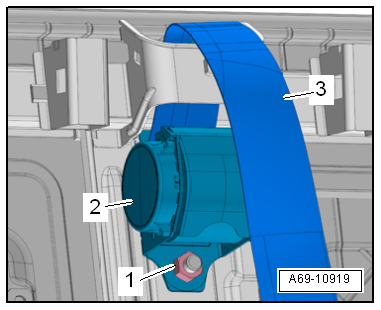

Detach three-point seat belt -2-
and remove it. |
| – |
Guide out belt webbing -3-. |
| – |
If parts of the belt system are removed because of an
accident, the belt system securing bolts must be renewed. |
| – |
Fit three-point seat belt ensuring that anti-rotation tab
engages in mounting and tighten nut. |
| Further installation is performed in reverse order of
removal |
| |
→ Chapter „Assembly overview - rear centre three-point seat
belt“ |
|
|
|
