Remove backrest cover and backrest padding
→ Chapter. |
|
|
|
| – |

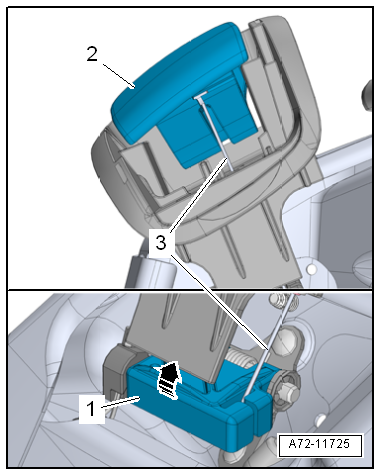

Swing mounting bracket for backrest release mechanism
-1- upwards as far as stop
-arrow- and hold it in this
position. |
| – |
Detach connecting Bowden cable -3-
from mounting bracket. |
| – |
Swing operating lever -2-
upwards as far as stop. |
| – |
Detach connecting Bowden cable from operating lever and
remove it. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - front backrest“ |
| |
→ Chapter „Assembly overview - front seat“ |
|
|
|
