Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - wheel housing trim, estate

This assembly overview covers the Volkswagen Golf Mk7 estate wheel housing trim, left side shown (right is a mirror image), with separate variants for vehicles with and without side padding.

  Note

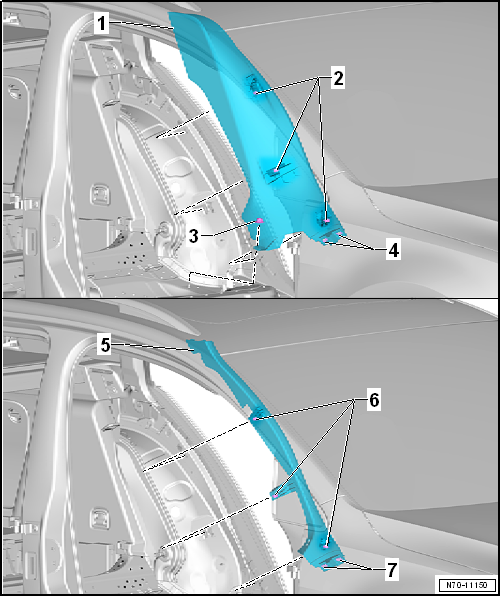

The illustration shows the wheel housing trim on the left side. The right-hand side is similar (mirror image of left-hand side).
I: Vehicles without side padding
II: Vehicles with side padding

Assembly overview - wheel housing trim, estate

1 -  Wheel housing trim
  • Removing and installing → Chapter
2 -  Retaining clip
  • Insert into trim
  • Remove any retaining clips left in body mountings using removal tool -T40280-.
  • Renew any damaged or deformed retaining clips
3 -  Nut
  • 3.5 Nm
4 -  Retaining clip
  • For securing sill panel moulding
  • Insert in wheel housing trim
  • Renew any damaged or deformed retaining clips
5 -  Wheel housing trim
  • Removing and installing → Chapter
6 -  Retaining clip
  • Insert into trim
  • Remove any retaining clips left in body mountings using removal tool -T40280
  • Renew any damaged or deformed retaining clips
7 -  Retaining clip
  • For securing sill panel moulding
  • Insert in wheel housing trim
  • Renew any damaged or deformed retaining clips.
