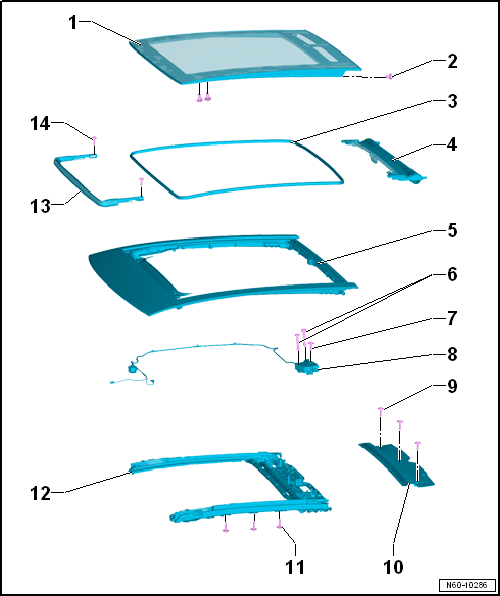

Assembly overview - sliding sunroof

1 -  Glass panel for panorama tilting sunroof (single pane safety glass)
  • Removing glass panel → Chapter
  • If drive defective, remove glass panel → Chapter
  • Adjusting glass panel → Chapter
2 -  Bolt
  • Bolts are microencapsulated and must always be renewed after loosening
  • Qty. 6
  • 5.5 Nm
3 -  Seal of sliding sunroof frame
  • Removing and installing → Chapter.
4 -  Sunroof roller blind
  • Removing and installing → Chapter
5 -  Sliding sunroof frame
  • Removing and installing sliding sunroof frame → Chapter
  • Guide channels are to be greased, if required, with special grease G 060 751 A2 only otherwise correct operation cannot be guaranteed.
6 -  Bolt
  • For sliding sunroof motor
  • Qty. 3
  • 4 Nm
7 -  Bolt
  • For sliding sunroof motor
  • Qty. 1
  • 4 Nm
8 -  Sliding sunroof adjustment control unit -J245-
  • Removing and installing control unit → Chapter
  • Programming control unit → Chapter
9 -  Bolt
  • For the cover
  • Qty. 5
  • 2.5 Nm
10 -  Cover
11 -  Bolt
  • Bolts are microencapsulated and must always be renewed after loosening
  • Qty. 13
  • 3 Nm
12 -  Guide plate
  • With tilting mechanism and cables
  • Forms one component in conjunction with securing bracket of lift sun blind and control unit
  • Removing and installing → Chapter
13 -  Wind deflector
  • Removing and installing → Chapter.
14 -  Bolt
  • For wind deflector
  • Qty. 2
  • 2 Nm
