 Note
| Pay attention to correct part number of metering pump -V54-
(different versions)
→ Electronic Parts Catalogue. |
Note
| Observe safety precautions for working on fuel supply system
→ Rep. gr.00. |
| Observe the rules for cleanliness when doing all work on the
fuel supply system
→ Chapter. |
| Always observe the safety precautions when working on the
fuel supply system
→ Chapter. |
| – |
Switch off electrical consumers. |
| – |
Switch off auxiliary/supplementary heater and switch off
ignition. |
The fuel system is pressurised.Danger of injury through fuel
spray.Always wear safety goggles.Always wear safety gloves.To release
pressure, wrap a clean cloth around the connection and carefully loosen
the connection.
| – |
Lower fuel tank until metering pump -V54- is accessible
→ Rep. gr.20. |
|
|
|
| – |

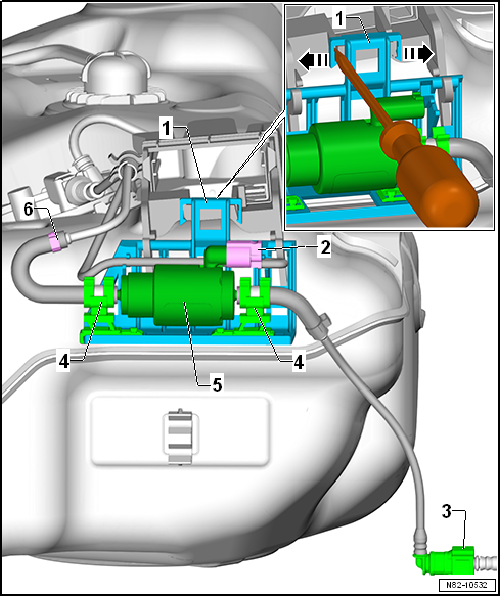

Press retaining tabs of bracket -1-
in -direction of arrow- to side,
using a suitable tool. |
| – |
Push up metering pump -V54--5-
with bracket -1- to remove upwards
from fuel tank. |
| – |
Separate connector -2- from
metering pump -V54--5-. |
| – |
Take metering pump -V54--5- out
of guides -4-. |
| – |
Release quick-release coupling of fuel line
-3-. Seal fuel lines. |
| – |
Open clip -6- and pull fuel
lines off metering pump -V54--5-.
Seal fuel lines. |
Note
| There are different types of the metering pump -V54-
→ Electronic Parts Catalogue. |
| Different versions; only metering pump -V54- with end
sealing valve permissible; pay attention to correct part number
→ Electronic Parts Catalogue |
|
|
|
| Installation is carried out in the reverse order. When
installing, note the following: |
| – |
Renew bracket if retaining tabs -1-
and -5- are damaged or broken off. |
| – |
Insert metering pump -V54--6-
into bracket so that O-type clips -8-
are seated in guides -5- and
connector -2- does not make contact
with bracket. |
| – |
Engage electrical wire -3- in
guides -arrows-. |
| – |
Install bracket with metering pump -V54--6-
ensuring proper engagement of retaining tabs
-1-. |
| – |
Check that fuel lines are properly secured in retainers
-5-. |
Note
| If fuel lines make contact with body, they can transfer
sound. |
| – |
Check that fuel lines are correctly seated and routed; fuel
lines must not make contact with body (risk of transferring
sound). |
| → Chapter „Overview of fitting locations - fuel supply system“ |
| Fuel tank; Removing and installing fuel tank
→ Rep. gr.20. |
|
|
 |
