Volkswagen Golf Mk7 Service & Repair Manual: Vehicles with multilink suspension

This assembly overview covers the multilink suspension Volkswagen Golf Mk7 exhaust: rubber mountings, a 20 Nm bolt, and the centre silencer — combined with the rear silencer as original equipment.

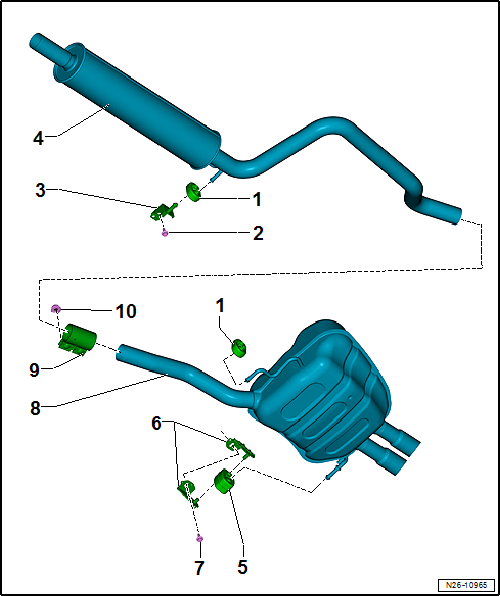

Vehicles with multilink suspension

1 -  Rubber mounting
Renew if damaged
2 -  Bolt
20 Nm
3 -  Mounting
Renew if damaged
4 -  Centre silencer
Combined in one unit with rear silencer as original equipment. Can be renewed individually for repair purposes.
Removing and installing → Chapter
Separating exhaust pipes/silencers → Chapter
Aligning exhaust system free of tension → Chapter
5 -  Rubber mounting
Renew if damaged
6 -  Mounting
Renew if damaged
7 -  Bolt
20 Nm
8 -  Rear silencer
In initial equipment, component with centre silencer. Can be renewed individually for repair purposes.
Removing and installing → Chapter
Separating exhaust pipes/silencers → Chapter
Aligning exhaust system free of tension → Chapter
9 -  Rear clamp
Align exhaust system free of tension before tightening → Chapter.
Installation position → Fig.
Tighten threaded connections evenly.
10 -  Nut
30 Nm

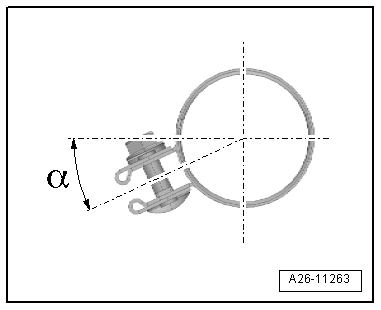

Installation position of rear clamp
–  Fit clamp in position shown.
Angle -α- = approx. 20°.
Bolt connections face to rear.
Nuts upwards.
