Using torque wrench -V.A.G 1331- and socket -3410-, this page covers removing the Volkswagen Golf Mk7 right door striker pin (the right side is described; the left is similar), noting that a bent striker pin — square U-shape — must be installed on reassembly.
| Special tools and workshop equipment
required |
|
|
|
| |
|
Torque wrench -V.A.G 1331- |
 Note
| Removal and installation are described only for the right
door striker pin. The right side is similar. |
|
|
Socket -3410-
|
Note
| A bent striker pin (square U-shape) must be installed. |
|
|

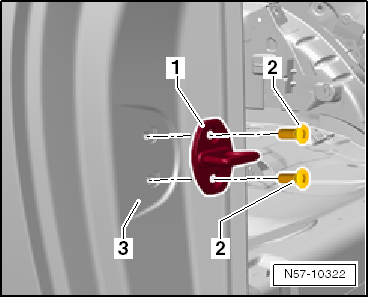

Remove bolts -2- and remove striker
-1- |
| – |
Position striker pin -1- on
B-pillar -3- with the U-shape
facing inwards. Tighten bolts -2-. |
| – |
Adjusting striker pin
→ Chapter |
|
|
|
|
Component |
Specified torques |
| Striker pin |
20 Nm |
Questions & answers
Removing and installing striker pin — Volkswagen Golf Mk7
How do I remove the Golf Mk7 front door striker pin?
Use socket -3410- and torque wrench -V.A.G 1331-. Unbolt the striker from the B-pillar. When refitting, tighten to the specified torque and check door engagement.
