Remove release lever
→ Chapter. |
| – |

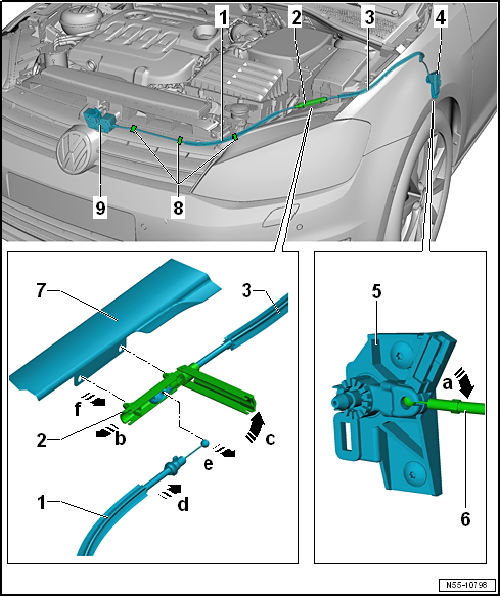

Remove Bowden cable -3- from mounting
bracket -5--arrow a-. |
| – |
Pull Bowden cable coupling -2- off
carrier -7--arrow e-. |
| – |
Slightly pull off Bowden cable -1--arrow a-. |
| – |
Open cap of Bowden cable coupling -arrow b-. |
| – |
Release Bowden cable -1--arrow c- and
remove from Bowden cable coupling -2-. |
Note
| In order to be able to remove or install the Bowden cable
-3-, remove the support arm
-7-
→ Chapter. |
Note
- If the Bowden cable -3- is not removed
from mounting bracket, the Bowden cable -1-
unhooks again and again when installing the Bowden cable coupling
-2-.
- The bonnet cannot be opened in this case
| – |
Hook in Bowden cable -1- into Bowden
cable coupling -2--arrow a-. |
| – |
Slightly pull Bowden cable off Bowden cable coupling
-arrow b-. |
| – |
Close Bowden cable coupling -arrow c-. |
| – |
Push Bowden cable -1- into Bowden cable
coupling -arrow d-. |
| – |
Attach Bowden cable coupling -2- to
lock carrier -4--arrow e-. |
| – |
Install Bowden cable -3- on mounting
bracket -5--arrow a-. |
| – |
Install release lever
→ Chapter. |
| – |
Before closing bonnet, check function of release lever and Bowden
cable. |
Questions & answers
Removing and installing Bowden cable — Volkswagen Golf Mk7
How do I remove the Golf Mk7 bonnet Bowden cable?
Open the bonnet, remove the release lever, detach the cable from the mounting bracket and clutch mechanism, pull the grommet from the bulkhead and withdraw the cable.
Can the Golf Mk7 Bowden cable stretch over time?
Yes. A stretched cable may make the bonnet release feel slack or not open the latch fully. Replace if the bonnet becomes difficult to release.
