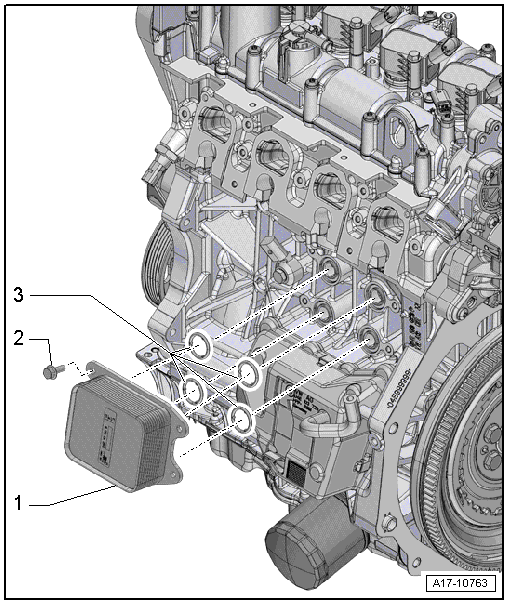

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - engine oil cooler
This assembly overview covers the Volkswagen Golf Mk7 engine oil cooler: a bolt torqued to 8 Nm plus 90°, always-renewed oil seals, and a reminder to change coolant after renewing the cooler.
| 1 - | Engine oil cooler |
| See note → Chapter |
| Removing and installing → Chapter |
| Change coolant after renewing. |
| 2 - | Bolt |
| Renew |
| 8 Nm + 90° |
| 3 - | Oil seals |
| Renew |
