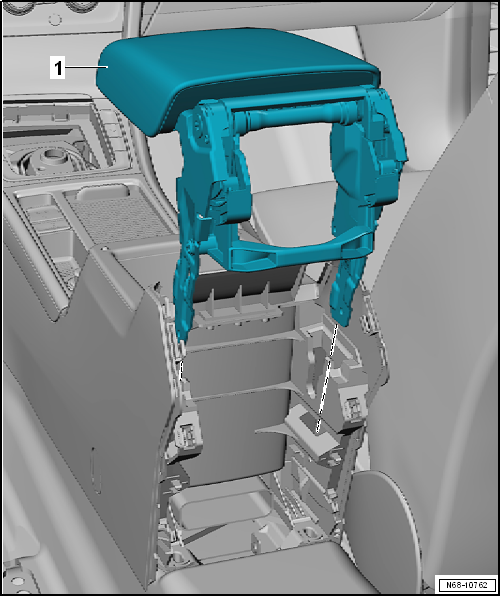

Assembly overview - front centre armrest
- Removing and installing
→ Chapter
Removing and installing front centre armrest
| Removing and installing front centre
armrest |
| |
Front seats in foremost position |
| – |
Remove trim at rear of centre console
→ Chapter. |
|
|
|
| – |
Carefully release side trims of centre console at rear from catches,
and push them slightly outwards. |
| – |

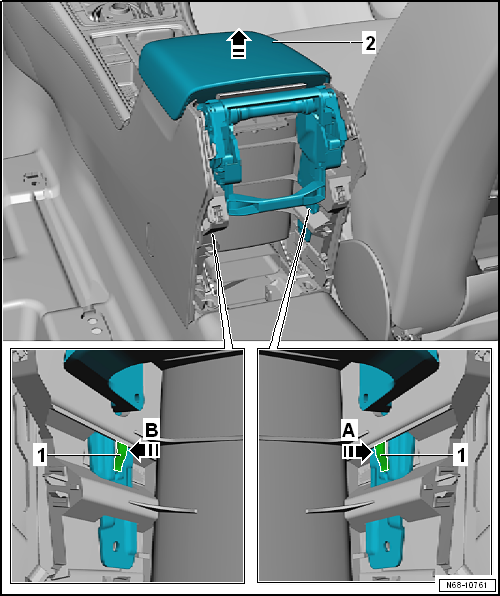

Using suitable pliers, push locking lugs -1-
outwards -arrow A- and
-arrow B-. |
| – |
Pull front centre armrest -2- upwards
out of centre console -arrow-. |
| – |
Bend locking lugs -1- back into their
original positions. |
| – |
Engage front centre armrest -2- in
respective mountings in centre console. |
| Further installation is performed in the reverse order of removal. |
Questions & answers
Front centre armrest — Volkswagen Golf Mk7
What does the Golf Mk7 front centre armrest service chapter cover?
Assembly overview showing the armrest and its mounting, plus removal and installation procedure.
Special tools and workshop equipment
required
Torque wrench -V.A.G 1783-
...
