If possible, move front seat to highest position to reduce
as much tension on torsion rod as possible. |
| – |
Remove front seat
→ Chapter. |
| – |
Remove front belt buckle
→ Chapter. |
| – |
Disconnect connector on seat longitudinal adjustment motor. |
| – |
Unclip wire from lower seat pan frame and lay it to one
side. |
|
|
|
Caution
| Risk of damage to threaded holes or bushes in the
bearing locations (threaded connection of upper and
lower seat pan frame). |
-
| |

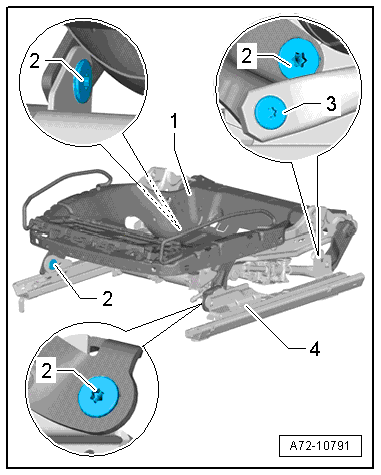

Bolt -3- has a
left-hand thread. |
-
| |
In order to unscrew the bolts mentioned below a
second mechanic must slightly press down the seat
via the backrest. |
|
| – |
Remove seat pan -1- from lower
frame -4-. |
|
|
|
Caution
| Risk of damage to bushes -1-
in the bearing locations -2-
(threaded connection of lower frame and seat pan). |
| |
The bushes cannot be replaced using workshop
equipment. |
| |
If the bushes are damaged, renew lower seat pan
frame. |
|
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - seat pan“ |
|
|
|
Questions & answers
Removing and installing lower seat pan frame with seat longitudinal adjustment motor -V28-/-V31- — Volkswagen Golf Mk7
How do I remove the Golf Mk7 lower seat pan frame with electric motor?
Move seat to highest position to reduce torsion rod tension. Remove seat, mount on stand, remove covers and disconnect motor, then unbolt the lower frame.
Note
The handle for seat height adjustment can be renewed with
front seat installed.
Removing
Note
...
Special tools and workshop equipment
required
Removal pliers -3392-
Note
...
