Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - rear door window

This assembly overview covers the Volkswagen Golf Mk7 rear door window: the regulator, and the spreader pin and plug that together secure the glass to the regulator carrier.

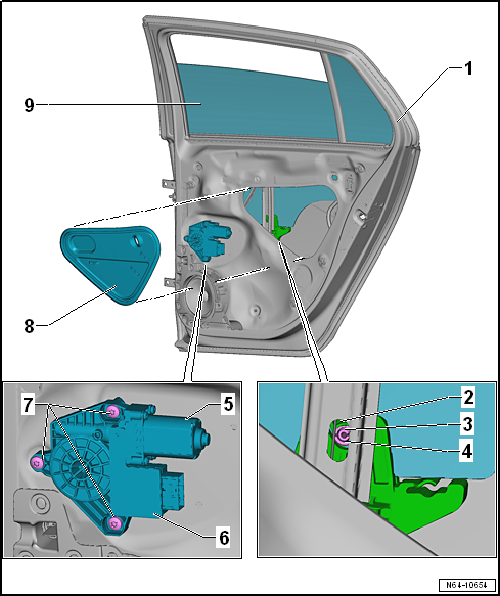

Assembly overview - rear door window

1 -  Rear door
2 -  Window regulator
  • Removing and installing → Chapter
3 -  Spreader pin
  • Together with spreader plug for securing door window.
4 -  Spreader plug
  • Together with spreader pin for securing door window.
5 -  Window regulator motor
  • Removing and installing → Chapter
6 -  Door control unit
7 -  Bolt
  • Qty. 3
  • 3 Nm
8 -  Inner door cover
  • Removing and installing → Chapter
9 -  Door window
  • Removing and installing → Chapter

    Questions & answers

    Assembly overview - rear door window — Volkswagen Golf Mk7

    What does the Golf Mk7 rear door window assembly show?
    The door, window regulator, spreader pin and plug (glass securing system), door window glass, and inner door cover.
    How is the Golf Mk7 rear door window secured to the regulator?
    With a spreader pin and spreader plug that lock the glass to the regulator carrier. These are accessible through a cutout in the inner door panel.
