| Special tools and workshop equipment
required |
|
|
|
|
|
|
Torque wrench -V.A.G 1783- |
| – |

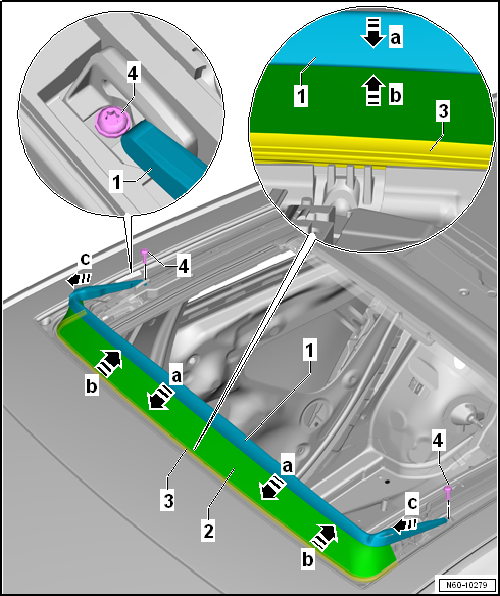

Open glass panel completely. |
| – |
Press wind deflector net -2- downwards
-arrows a- to remove tension from it and
hold it down. |
| – |
Pull welting -3- out of assembly frame
-arrows b-. |
| – |
Remove bolts -4- on left and right. |
| – |
Pull wind deflector off assembly frame -arrow
c-. |
| – |
Push wind deflector into assembly frame. |
| – |
Tighten bolts -4- on left and right. |
| – |
Press wind deflector net -2- downwards
-arrows a- to remove tension from it and
hold it down. |
| – |
Press welting -3- into assembly frame. |
| |
Wind deflector
→ Chapter „Assembly overview - sliding sunroof“ |
Questions & answers
Removing and installing wind deflector — Volkswagen Golf Mk7
How do I remove the Golf Mk7 sunroof wind deflector?
Open the glass panel fully, press the deflector net downward to release tension, unhook the springs and unbolt the deflector frame.
What is the Golf Mk7 sunroof wind deflector?
A spring-loaded mesh that pops up when the glass panel opens, reducing wind buffeting and turbulence noise inside the cabin.
