Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - speed sensor on rear axle, all-wheel drive

This assembly overview covers the 4MOTION rear ABS speed sensor — the same paste and cleaning requirement, mounted near the drive shaft.

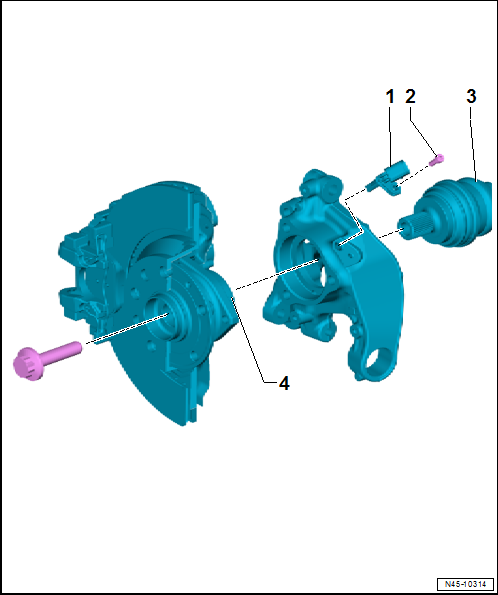

Assembly overview - speed sensor on rear axle, all-wheel drive

1 -  ABS speed sensor
Clean inside surface of hole before inserting sensor
Coat inside surface with high-temperature paste -G 052 112 A3-
Removing and installing → Chapter
2 -  Bolt
8 Nm
3 -  Drive shaft
Assembly overview → Running gear, axles, steering; Rep. gr.42.
Removing and installing → Running gear, axles, steering; Rep. gr.42.
4 -  Wheel hub with wheel bearing unit
The ABS sensor ring is integrated in the wheel bearing unit.
Check ABS sensor ring → Chapter
Removing and installing → Running gear, axles, steering; Rep. gr.42
