Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - locking mechanism
This assembly overview covers the Volkswagen Golf Mk7 left rear seat backrest (1/3) locking mechanism — the right backrest (2/3) is similar: the backrest frame and the trim covering the mechanism.

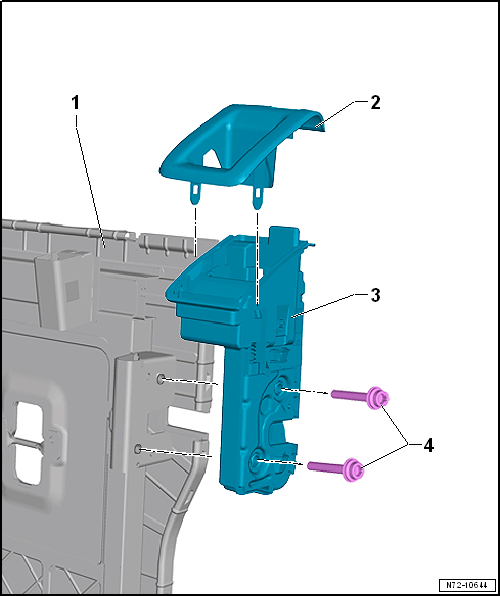

Note| The assembly overview shows the locking mechanism for left rear seat back rest (1/3). The locking mechanism for the right rear seat backrest (2/3) is similar. |
| 1 - | Backrest frame |
| 2 - | Trim for locking mechanism |
- Removing and installing → Chapter
| 3 - | Locking mechanism for rear seat backrest |
- Removing and installing → Chapter
| 4 - | Bolt |
- Qty. 2
- 23 Nm
