| In the interior, the centre console must be removed. |
| The heat shield beneath the vehicle must be removed. |
| – |
Remove selector lever handle
→ Chapter. |
| – |
Remove centre console
→ General body repairs, interior; Rep. gr.68. |
| – |
Remove centre console vent
→ Heating, air conditioning; Rep. gr.87. |
| Continued for all vehicles: |
|
|
|
| – |
If fitted, remove mounting bracket -2-.
To do this, unscrew bolts -1- on
right and left. |
| – |
Separate electrical connector from selector mechanism to
vehicle wiring harness. |
| – |
Shift selector lever on selector mechanism to position “N”.
Only in this position the selector lever cable can be released. |
| – |
Remove heat shield for centre tunnel below selector
mechanism
→ General body repairs, exterior; Rep. gr.66. |
|
|
|
| – |

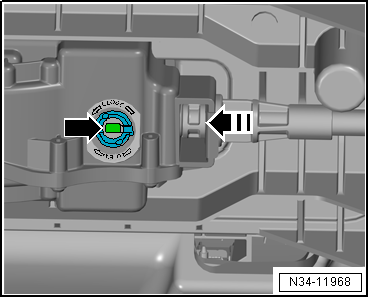

Remove plug and securing clip -arrow-. |
| Renew the securing clip after each removal. |
|
|
|
| – |

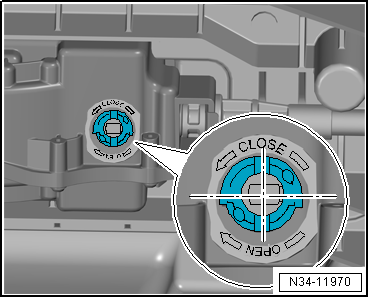

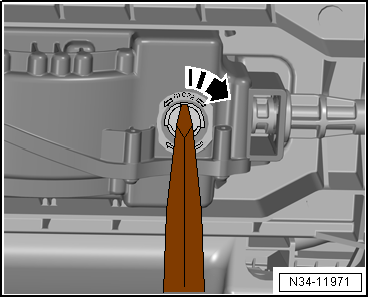

Fit a large screwdriver in grooves of locking mechanism and
turn it 90° in direction of arrow. |
| – |
Pull selector lever cable out of selector mechanism. |
|
|
|
| – |
If fitted, remove bracket -A-. |
| – |
Remove nuts -arrows- inside
vehicle. |
| – |
Remove selector mechanism -B-
together with selector housing downwards. |
| Install in reverse order of removal. During this step,
observe the following: |
 Note
| Do not bend or kink selector lever cable. |
| Do not grease selector lever cable. |
| Following installation of selector mechanism, selector lever
cable must be checked for ease of movement and be adjusted. |
| Selector lever on selector mechanism must be set to position
“N”. Only in this position the selector lever cable can be
engaged. |
|
|
|
| – |
Insert selector lever cable into selector mechanism until it
is visible in locking mechanism -arrow-. |
|
|
|
| – |

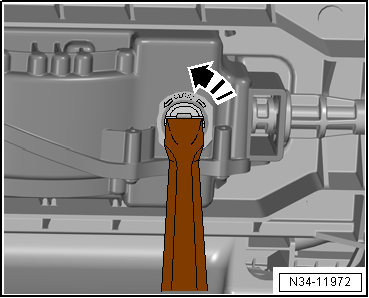

Fit a large screwdriver in grooves of locking mechanism and
turn it 90° in direction of arrow. |
|
|
|
| – |
The selector lever cable is properly engaged when the
grooves in the locking mechanism are at right angles to the
selector lever cable. |
|
|
|
| – |

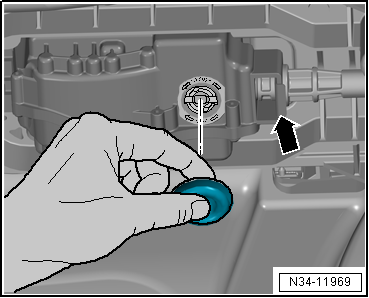

Install new securing clip -arrow-
and insert plug. |
| – |
Install heat shield below selector mechanism
→ General body repairs, exterior; Rep. gr.66. |
|
|
|
| – |
If present, install mounting bracket
-2-
→ General body repairs, interior; Rep. gr.68. |
| – |
Install centre console vent
→ Heating, air conditioning; Rep. gr.87. |
| Continued for all vehicles: |
| – |
Install centre console
→ General body repairs, interior; Rep. gr.68. |
| – |
Install selector lever handle
→ Chapter. |
| – |
Adjust selector lever cable
→ Chapter. |
| – |
Check selector mechanism
→ Chapter. |
| Selector housing to body
→ Chapter |
|
|
|
Questions & answers
Removing and installing selector mechanism without selector lever cable, manufacturer ZF — Volkswagen Golf Mk7
How do I remove the Golf Mk7 DSG selector mechanism without cable (ZF)?
Same centre console removal, but leave the cable attached to the gearbox. Disconnect only from the selector mechanism end.
Special tools and workshop equipment
required
Removal lever -80 - 200-
Brief des ...
Special tools and workshop equipment
required
Removal lever -80 - 200-
Removing
...
