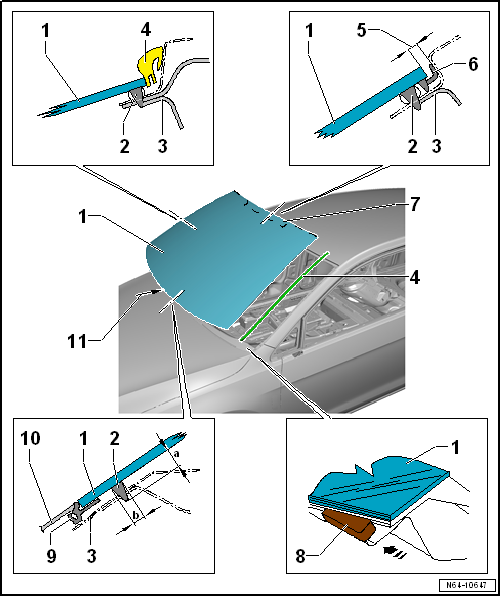

Assembly overview - windscreen

1 -  Windscreen
  • Removing and installing → Chapter
2 -  PUR adhesive sealant
  • Cross section of bead: -width b- = 7 mm, -height a- = 10 mm (including precoating, residual material on window glass and window flange).
  • Minimum curing period → Chapter
3 -  Body flange
  • Touch up paintwork damage
4 -  Water deflector
5 -  Gap
  • Must be uniform
6 -  Seal
7 -  Communication window
  • For insulated glass only
8 -  Windscreen adjuster
  • 443 845 631 A
  • Remove 2 hours after installation of windscreen
9 -  Windscreen seal
  • Is part of windscreen
10 -  Plenum chamber cover
  • Must be removed from windscreen seal by hand only
  • Removing and installing → Chapter
11 -  Electrical connections
  • For heated windscreen
