 Note
| Fuel lines are secured with O-type clips. These O-type clips
must always be renewed every time they are removed. |
| Start engine if fuel tank was empty. Then start the
auxiliary heater repeatedly until the heater does not switch off
by itself. |
| Observe the rules for cleanliness when doing all work on the
fuel supply system
→ Chapter. |
| Always observe the safety precautions when working on the
fuel supply system
→ Chapter. |
|
|
|
| 1 - |
Fuel line to metering pump -V54- |
| With auxiliary heater control unit -J364-. |
| Location: behind front bumper cover on right |
| Removing and installing
→ Chapter |
| 3 - |
Quick-release coupling of fuel line |
| 4 - |
Quick-release coupling of fuel line |
| The metering pump -V54- is located on the fuel tank. |
| Removing and installing
→ Chapter |
| Testing quantity of fuel delivered
→ Chapter. |
| Fuel delivery unit can be found on right under bench seat. |
| With fuel gauge sender -G- |
| Removing and installing
→ Rep. gr.20 |
Questions & answers

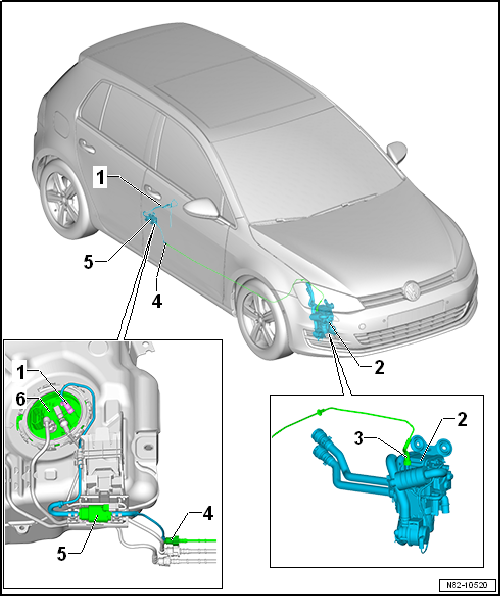

Overview of fitting locations - fuel supply system, Golf and Golf GTE — Volkswagen Golf Mk7
