Removing tank flap unit
→ Chapter |
| – |
To get access to connector, remove right luggage compartment side
trim
→ General body repairs, interior; Rep. gr.70 |
| – |

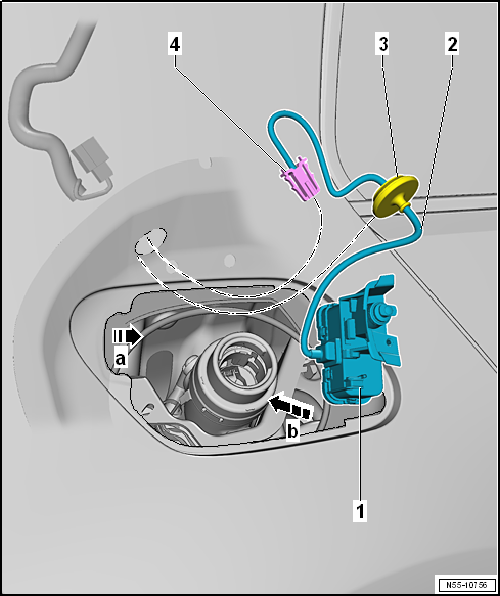

Separate electrical connector -4-. |
| – |
Pull actuator -1- out of side panel
-arrow a-. |
| – |
Assemble connector -4-. |
| – |
Attach grommet -3- to side panel. |
| – |
Push actuator -1- into side panel
-arrow b-. |
Questions & answers
Removing and installing actuator — Volkswagen Golf Mk7
How do I remove the Golf Mk7 tank flap actuator?
Remove the tank flap unit, access the connector through the right luggage compartment side trim, disconnect it, unbolt the actuator and remove.
What does the Golf Mk7 tank flap actuator do?
It electrically locks and unlocks the fuel filler flap as part of the central locking system. When you lock the car, the actuator secures the flap.
Removing
–
Push tank flap -1- out of catches of
tank flap unit -2--arrows-.
–
Remove tank flap.
Installing
...
