| Special tools and workshop equipment
required |
|
|
|
| – |

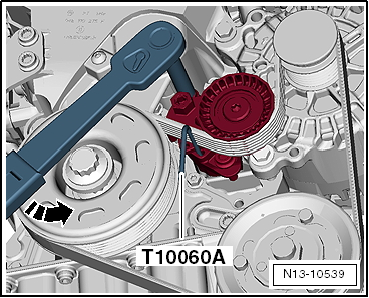

To slacken poly V-belt, turn tensioner in anti-clockwise
direction -arrow-. |
| – |
Lock tensioner in place with locking pin -T10060 A-. |
| – |
If poly V-belt is to be reinstalled, mark direction of
rotation on belt using chalk or felt tip pen before removing. |
| Installation is carried out in the reverse order; note the
following: |
|
|
|

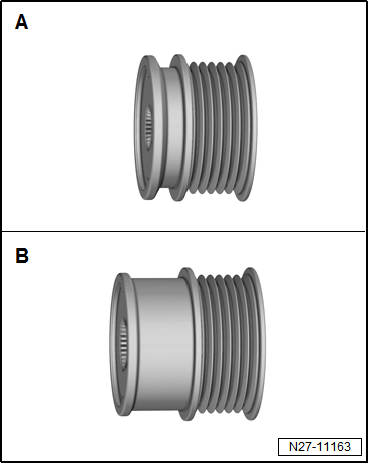

| Various versions of the overrunning alternator pulley,
-A- or -B-,
may be fitted depending on the type and version of alternator. |
|
|
|
| The length of the poly V-belt must be determined according
to the
→ Electronic Parts Catalogue depending on the version
of overrunning alternator pulley. |
| Installation is carried out in the reverse order; note the
following: |
| – |

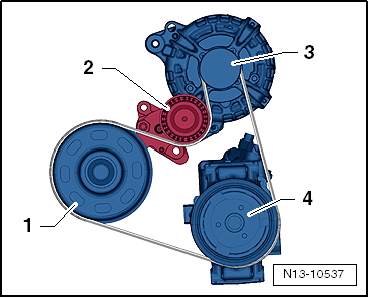

Fit poly V-belt as shown in illustration. |
| 2 - |
Tensioner for poly V-belt |
| 4 - |
Air conditioner compressor |
|
|
|
| – |
Turn tensioner anti-clockwise
-direction of arrow- and remove locking pin -T10060 A-. |
| – |
Check that poly V-belt is properly seated. |
| – |
Start engine and check that poly V-belt runs properly. |
|
|
|
