| Special tools and workshop equipment
required |
|
|
|
| |
Special pop rivet pliers -V.A.G 1753B- |
| – |
Remove front seat
→ Chapter. |
| – |
Secure front seat on seat repair stand
→ Chapter. |
| – |
Remove backrest cover and backrest padding
→ Chapter. |
|
|
|
| – |

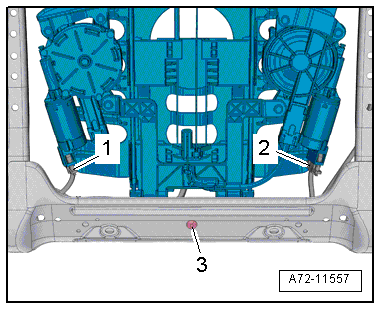

Release and pull off connectors -1 and
2- on motors. |
WARNING
|
| Vehicles with entry assistance |
| – |
Cut through cable tie for Bowden cable for backrest release
mechanism. |
|
|
|
| Continued for all vehicles |
| – |
Swing lumbar support -1- at
bottom towards front. |
| – |

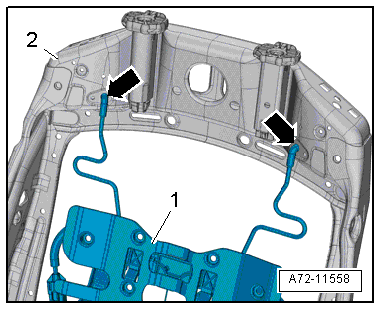

Detach lumbar support -1- on
top from backrest frame -2--arrows-
and remove it. |
| Install in reverse order, but note the following: |
| – |
Attach lumbar support -1- on
top to backrest frame -2--arrows-
and swing toward rear at bottom. |
| – |
Rivet lumbar support to backrest frame. |
| |
→ Chapter „Assembly overview - front backrest“ |
| |
→ Chapter „Assembly overview - front seat“ |
|
|
|
Questions & answers
Removing and installing lumbar support adjustment motor -V125-/-V126-/-V129-/-V130- — Volkswagen Golf Mk7
How do I remove the Golf Mk7 lumbar support motor?
Use pop rivet pliers -V.A.G 1753B-, hand drill and safety goggles. Remove seat, strip backrest cover, drill out rivets and extract the motor.
Note
Removal and installation are described for the left
vehicle side. Follow same instructions for the right side as
appropriate.
&nbs ...
Note
Removal and installation are described for the left vehicle
side. Follow same instructions for the right side as
appropriate.
...
