| Special tools and workshop equipment
required |
|
|
 Note
| Removal and installation are only described for the left
door handle bracket. The right side is similar. |
|
|
Torque wrench -V.A.G 1783- |
| – |
Remove front door trim
→ General body repairs, interior; Rep. gr.70. |
| – |
Remove lock cylinder cover cap
→ Chapter and lock cylinder
→ Chapter depending on version. |
| – |
Or remove cover cap without lock cylinder
→ Chapter. |
| – |
Remove door handle
→ Chapter. |
| – |
Remove inner door cover
→ Chapter. |
| – |
Remove door handle
→ Chapter. |
| – |

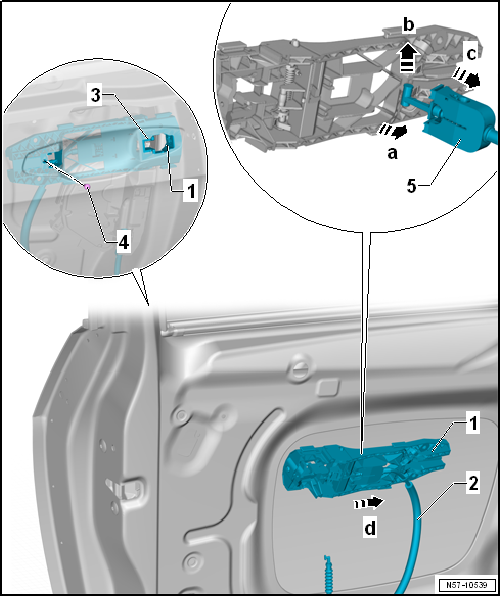

Unscrew bolt -4- and remove base
-1-. |
| – |
Remove door handle bracket -1- from
front door -arrow d-. |
| – |
Release holding device -5- and swivel
it out of mounting in door handle bracket -arrow
a-. |
| – |
Lift cable bolt out of mounting -arrow b-. |
| – |
Take cable -2- out of door handle
bracket -1--arrow c-. |
| – |

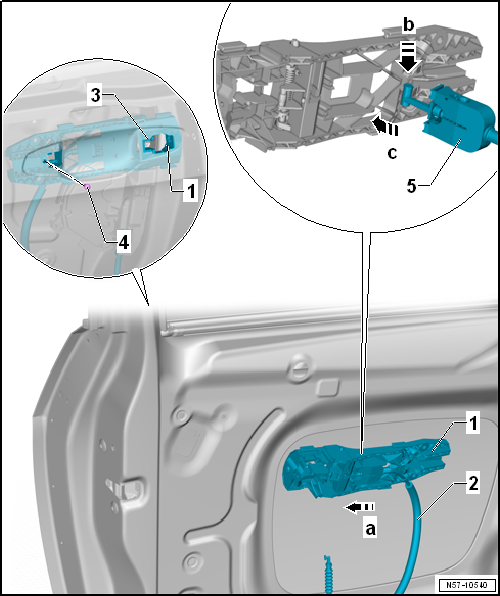

Insert cable -2- into door handle
bracket -1-. |
| – |
Slide cable bolt into mounting -arrow b-. |
| – |
Swivel holding device -5- into mounting
of door handle bracket -arrow c- and
engage. |
| – |
Guide door handle bracket -1- at front
into door -arrow a-. |
| – |
Insert base -1- and tighten bolts
-4-. |
| |
Bolts
→ Chapter „Assembly overview - door handle and door lock“ |
