| Special tools and workshop equipment
required |
|
|
|
|
|
|

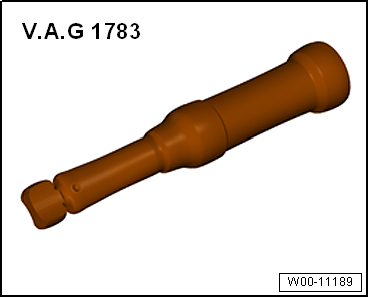

Torque wrench -V.A.G 1783- |
Note
-
| |
The guide rails and the securing brackets are one component. |
-
| |
The cables and the tilting mechanism are integrated in this
component and cannot be replaced separately. |
| – |
Remove moulded headliner
→ General body repairs, interior; Rep. gr.70. |
| – |
Remove glass panel
→ Chapter. |
| – |

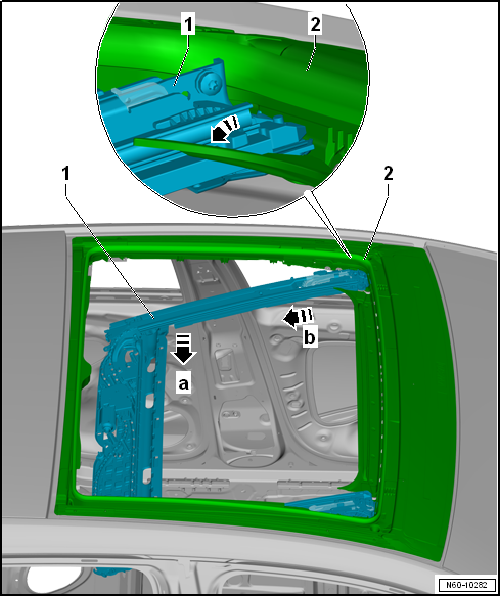

Mark the position -4- of the guide
rails -1- on assembly frame
-3-. |
| – |
Low guide rails -1- at rear
-arrow a-. |
| – |
Pull guide rails -1- off assembly
carrier -2-, keeping them parallel with
each other -arrow b-. |
Note
| Do not twist or bend the guide rails and securing bracket as
there is no strut in the front area. |
| – |
Push guide rails -1- into assembly
carrier -2-, keeping them parallel to each
other. |
| – |
Fit guide rails -1- on assembly frame
at rear. |
| – |

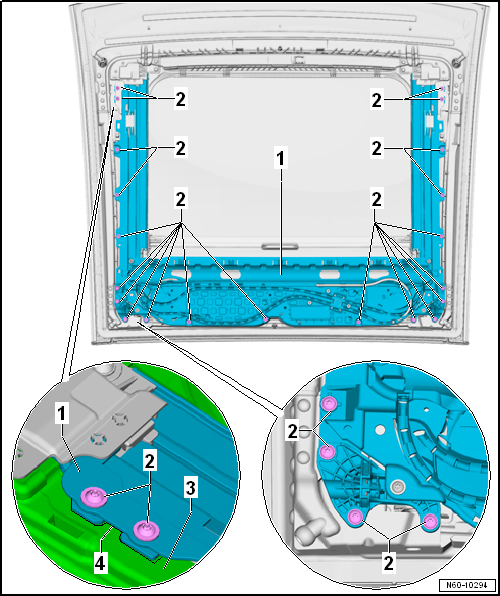

Insert bolts -2- and tighten slightly. |
| – |
Align guide rails -1- in accordance
with the marking made previously -6-. |
| – |
Further installation is performed in the reverse order of removal. |
| |
Guide rails
→ Chapter „Assembly overview - sliding sunroof“ |
