Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing refrigerant line between condenser and evaporator

Using engine bung set -VAS 6122- and torque wrench -V.A.G 1331-, this page covers removing the Volkswagen Golf Mk7 refrigerant line between the condenser and evaporator.

Special tools and workshop equipment required

Engine bung set -VAS 6122

Torque wrench -V.A.G 1331/- (5…50 Nm) Air conditioner service station Removing –  Observe safety precautions → Chapter „Safety precautions when handling refrigerants“. –  Comply with notes → Chapter „Working on refrigerant circuit“. –  Extract refrigerant using air conditioner service station before opening refrigerant circuit. –  Remove front bumper cover → General body repairs, exterior; Rep. gr.63. –  Remove right engine mounting → Rep. gr.10. Risk of freezing injury caused by escaping pressurised refrigerant.There is a risk of injury to the skin and parts of the body due to freezing.Always wear safety gloves.Always wear safety goggles.Extract refrigerant, and open the refrigerant circuit immediately afterwards.If more than 10 minutes passed since the refrigerant has been extracted, do not open the refrigerant circuit prior to extracting refrigerant anew. Due to re-evaporation, pressure will be built up in the refrigerant circuit.

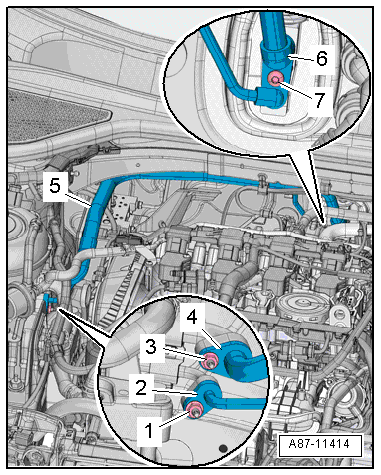

–  Unscrew nut -1-. –  Separate refrigerant lines.

–  Unscrew bolt -5- of lower refrigerant line -3-. –  Remove refrigerant line -3- from condenser -1-. –  Unclip refrigerant line -3- from retainers, and remove it. Installing Installation is carried out in the reverse order. When installing, note the following: –  Renew seals. For versions, refer to → Electronic Parts Catalogue. –  Moisten seals with refrigerant oil before installing → Chapter.   Note Ensure proper seating of seals in the groove of the respective refrigerant line. Specified torques → Chapter „System overview - refrigerant circuit“. Assembly overview - assembly mountings → Rep. gr.10 Front bumper cover → General body repairs, exterior; Rep. gr.63

Questions & answers

Removing and installing refrigerant line between condenser and evaporator — Volkswagen Golf Mk7

How do I remove the Golf Mk7 condenser-to-evaporator refrigerant line?

Evacuate the circuit, cap openings with engine bung set -VAS 6122-, unbolt line fittings and remove. Renew all seals.
