Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - Bowden cable

This assembly overview covers the towing bracket release Bowden cable on the Volkswagen Golf Mk7: the release lever inside the cabin, the frame in the lock carrier trim, and the hexagon nut (5 Nm) that must be renewed after every removal.

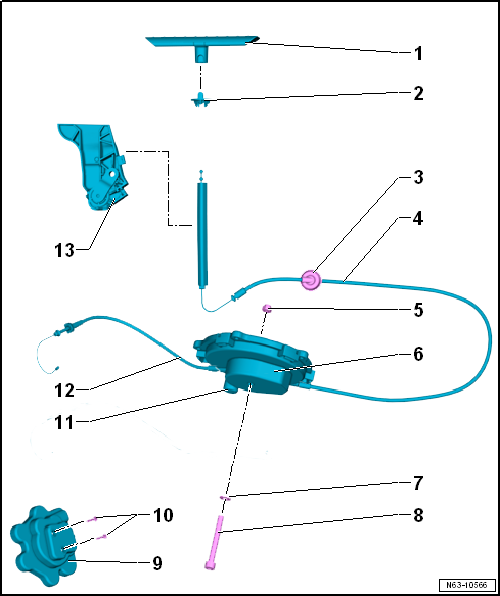

Assembly overview - Bowden cable

1 -  Release lever
  • In the interior
2 -  Frame
  • In lock carrier trim



3 -  Grommet
  • In cross panel.



4 -  Bowden cable
  • From gearbox to release lever
  • Forms one part with gearbox and cannot be renewed individually
5 -  Hexagon nut
  • 5 Nm
  • Needs to be renewed after each removal of gearbox
6 -  Drive
  • If one Bowden cable is damaged, the entire gearbox needs to be renewed, together with both Bowden cables
7 -  Washer
  • Needs to be renewed after each removal of gearbox.
8 -  Bolt
  • 5 Nm
  • Needs to be renewed after each removal of gearbox
9 -  Cover
  • Always needs to be renewed together with bolts
10 -  Bolts
  • 3 Nm
  • Always need to be renewed together with cover
11 -  Cover
12 -  Bowden cable
  • From gearbox to release lever.
  • Forms one part with gearbox and cannot be renewed individually.
13 -  Guide
  • In the interior, bolted to cross panel
