Release hose clips -1- and
-2-, and remove air pipe. |
|
|
|
| – |

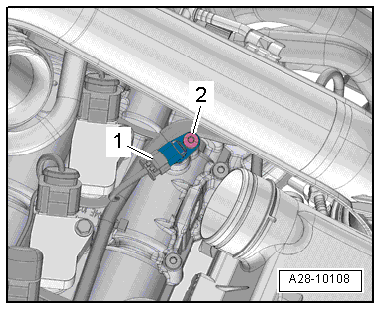

Disconnect electrical connector -1-. |
| – |
Unscrew bolt -2- and remove
Hall sender -G40-. |
| – |
Install in reverse order. |
| → Chapter „Assembly overview - ignition system“ |
|
|
|
Questions & answers
Removing and installing Hall sender -G40- — Volkswagen Golf Mk7
How do I remove the Golf Mk7 1.4 TSI Hall sender -G40-?
Disconnect the connector, unbolt from the cylinder head/block and remove. This is the camshaft position sensor.
Removing
–
Remove air conditioner compressor from bracket and tie up
→ Heating, air conditioning; Rep. gr.87.
...
Removing
–
Release hose clips -1- and
-2-, and remove air pipe.
...
