Volkswagen Golf Mk7 Service & Repair Manual: Overview of fitting locations - front control motors, LHD vehicles

This overview maps LHD Volkswagen Golf Mk7 heating control motors: the temperature flap motor -V68- — checked with the diagnostic tester and renewed by initiating a basic setting — plus the air distribution flap motor.

Overview of fitting locations - front control motors, LHD vehicles

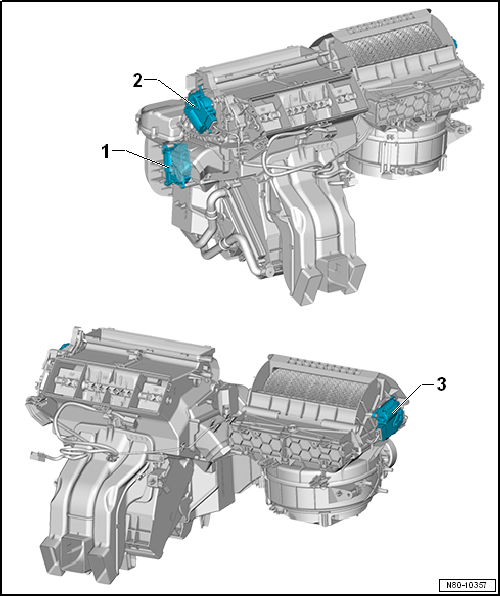

1 -  Temperature flap control motor -V68-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter
Renewing: initiate basic setting using vehicle diagnostic tester.
2 -  Air distribution flap control motor -V428-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter
Renewing: initiate basic setting using vehicle diagnostic tester.
3 -  Air recirculation flap control motor -V113-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter
Renewing: initiate basic setting using vehicle diagnostic tester.

    Questions & answers

    Overview of fitting locations - front control motors, LHD vehicles — Volkswagen Golf Mk7

    Where are the Golf Mk7 HVAC control motors (LHD)?
    Temperature motor -V68- on the heater housing, distribution motors -V70/V71- on the air distribution box, recirculation motor -V113- on the fresh air inlet.
    Control motors
    ...

    Overview of fitting locations - front control motors, RHD vehicles
    1 -  Air recirculation flap control motor -V113- Checking: with vehicle diagnostic tester Removing and installing → Chapter ...
