Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing centre armrest

Using torque wrench -V.A.G 1410-, this page covers removing the Volkswagen Golf Mk7 rear centre armrest — open the through-loading lid about a third, then unscrew the bolts to separate it from the lid.

Special tools and workshop equipment required



Torque wrench -V.A.G 1410-
Torque wrench -V.A.G 1410-
Removing

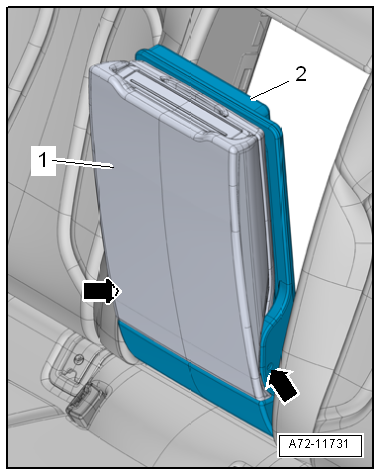

–  Open lid -2- for through-loading aperture with centre armrest by approx. 1/3.
–  Unscrew bolts -arrows-.
–  Remove centre armrest -1- from lid for through-loading aperture.
Installing
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - centre armrest“
