Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing emblems at rear
Note: the rear Volkswagen Golf Mk7 manufacturer emblem cannot be removed without damage — this page gives the careful levering technique to remove it from the swivel badge and press a new one in until it engages audibly.
Note
| The emblem cannot be removed without damage. |
| Removing |

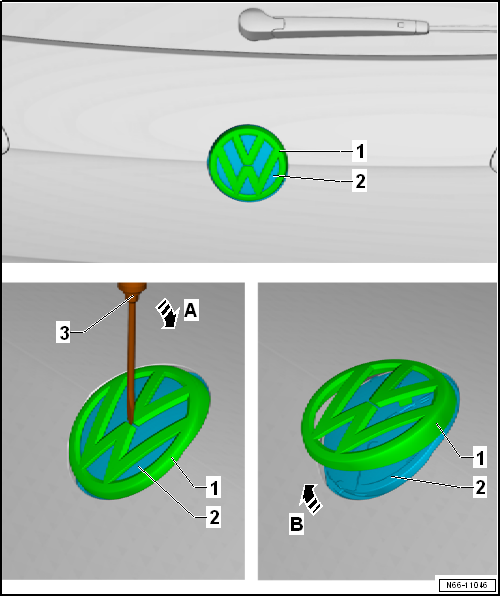

| – | Use a screwdriver -3- to carefully lever manufacturer emblem -1- off swivel badge -2- in -direction of arrow A-. |
| Installing |
| – | Press manufacturer emblem -1- onto swivel badge -2- until it engages audibly. |
Questions & answers
Removing and installing emblems at rear — Volkswagen Golf Mk7
How do I remove the Golf Mk7 rear VW badge?
Lever the badge off the swivel mechanism with a screwdriver. The badge cannot be removed without damage. On tailgate-release models, the swivel mechanism stays in place.
