 Note
| The vacuum sender -G608- is only installed in selected
petrol engines. |
|
|
|
| – |

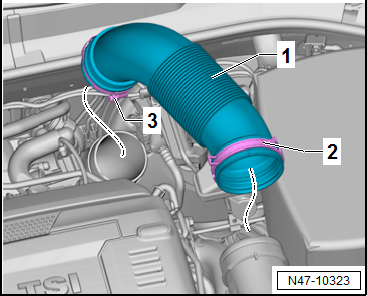

Open clamp -2- and screw-type
clip -3-. |
| – |
Remove air ducting hose -1-. |
|
|
|
| Continuation for all models: |
| – |

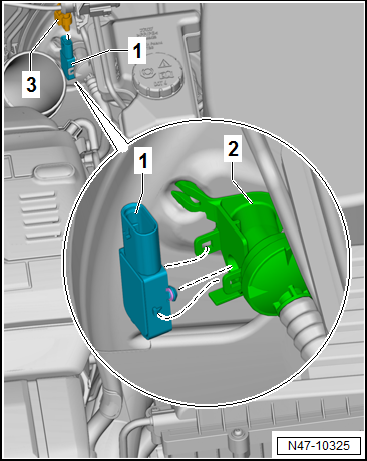

Disconnect connector -3- from
vacuum sender -G608--1-. |
| – |
Unclip vacuum sender -G608--1-
from vacuum line -2-. |
| Install in reverse order of removal, observing the
following: |
Note
| Make sure to check the seal for damage before installing the
vacuum sender -G608-. |
| If the seal is damaged, the vacuum sender must be renewed. |
|
|
|
