Note
-
| |
The area on which the adhesive bead is applied is not
precoated or primed. |
-
| |
The sealing lip is included with a new windscreen. |
-
| |
No windows are precoated. |
| – |
Clean all round edge of window over a width of 20 mm with
cleaning solution -D 009 401 04-. |
| – |
Then rub edge of window dry using a lint-free cloth. |
WARNING
| The ceramic coating on the window is not glass or
paint primer! The ceramic coating must be primed before
application of adhesive sealing compound! Use only glass
and paint primer D 009 200 02! |
|
|
|
| – |

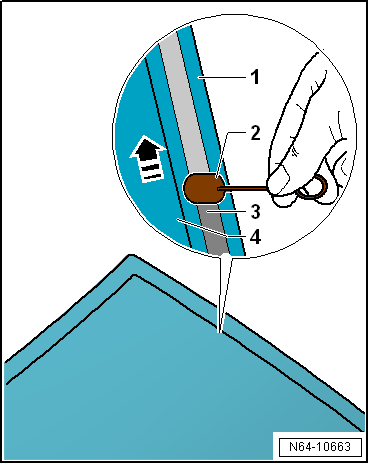

Using applicator -D 009 500 25--1-,
apply glass and paint primer -2-
evenly in one pass. |
| |
Drying time approx. 10 minutes |
|
|
|
Note

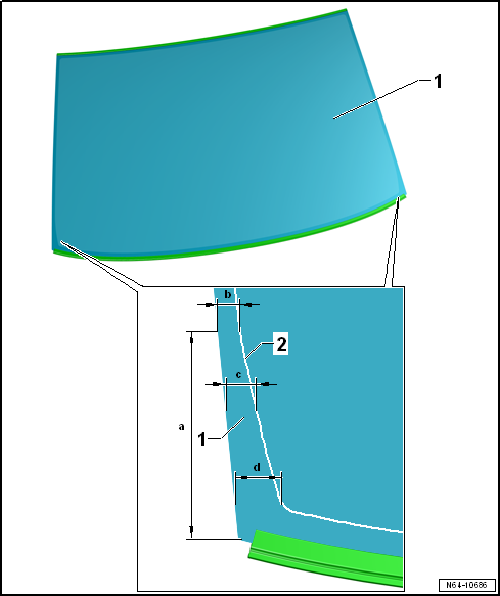

| The distance between glass/paint primer as well as adhesive bead and
the outer edge of the windscreen differs in the lower area of the
windscreen. |
| – |
Up to -dimension a- = 150 mm measured
from lower edge of windscreen the distance between the adhesive bead and
the outer edge is -dimension b- = 6 mm. |
| – |
From this point down to the bend the distance amounts to
-dimension d- = 20 mm. |
| – |
At half distance between dimension a and the bend
-dimension c- must be 10 mm. |
