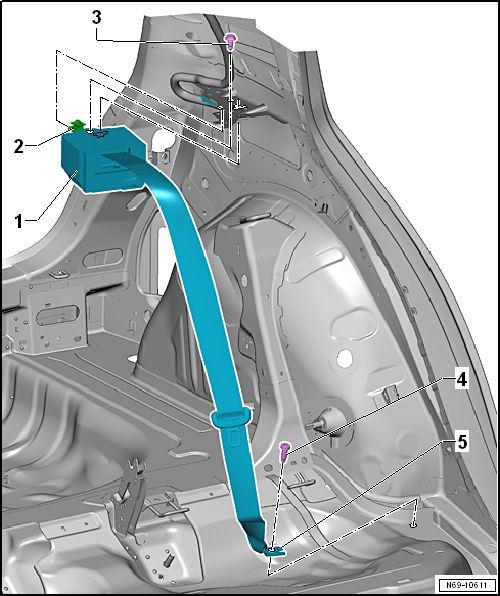

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - three-point seat belt, 4-door model, with belt tensioner
This assembly overview covers the 4-door Volkswagen Golf Mk7 rear seat belt with tensioner: the inertia reel, its wiring harness, and two 40 Nm bolts requiring mandatory renewal after deployment.
| 1 - | Belt inertia reel |
- Removing and installing → Chapter
| 2 - | Electrical wiring harness |
| 3 - | Bolt |
- If removed due to an accident with seat belt fastened, renew bolt
- 40 Nm
| 4 - | Bolt |
- If removed due to an accident with seat belt fastened, renew bolt
- 40 Nm
| 5 - | Rear outer belt end fitting |
- Removing and installing → Chapter
Questions & answers
Assembly overview - three-point seat belt, 4-door model, with belt tensioner — Volkswagen Golf Mk7
What does the Golf Mk7 4-door rear belt with tensioner assembly show?
Inertia reel, tensioner wiring, bolt (40 Nm) and hardware.
Assembly overview - three-point seat belt, 4-door model, without belt
tensioner
1 -
Belt inertia reel
Removing and installing
→ Chapter
2 -
Bolt
If removed due to an accident with seat belt f ...
Assembly overview - three-point seat belt, estate, without belt tensioner
1 -
Belt guide
Removing and installing
→ Chapter
2 -
Belt inertia reel
Removing and installing
→ Chapte ...
