Using assembly tool -T10219-, thrust plate -VW 402- and press tools -VW 411-/-VW 412-, this page covers renewing the front bonded rubber bush on the Volkswagen Golf Mk7 lower suspension link — remove the link first.
| Special tools and workshop equipment required |
| – |
Remove lower suspension link
→ Chapter. |
| Pressing out bonded rubber bush |
|
|
|
| – |

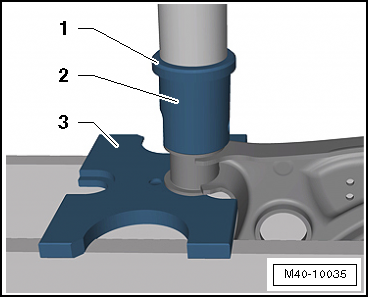

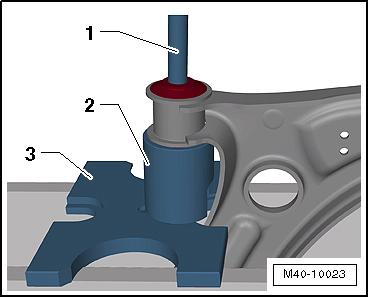

Press out bonded rubber bush as illustrated. |
| 2 - |
Tube -T10219/1- (the cut-out must face the suspension link) |
| 3 - |
Thrust plate -VW 402- |
| Pressing in bonded rubber bush |
|
|
|
| – |

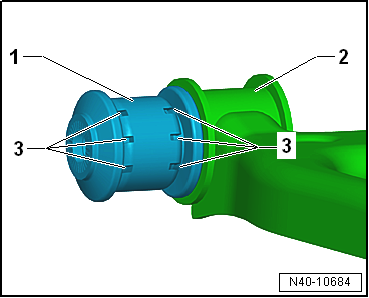

Align bonded rubber bushes -1-
to suspension link -2-. |
| The grooves -3- must face
towards suspension link -2- as
shown in illustration. |
| – |
Moisten outer surface of bonded rubber bush with assembly
oil -G 294 421 A1-. |
|
|
|
| – |

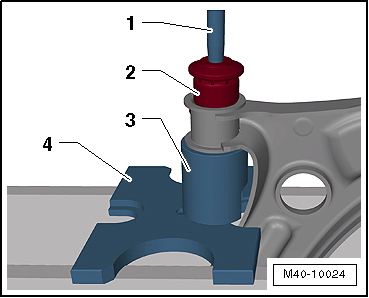

Press in bonded rubber bush as illustrated. |
| 3 - |
Tube -T10219/1- (the cut-out must face the suspension link) |
| 4 - |
Thrust plate -VW 402- |
 Note
| At start of pressing-in process, bonded rubber bush is
temporarily slanted. During further procedure, it then
straightens. It does not have to be pushed further. |
|
|
|
| – |

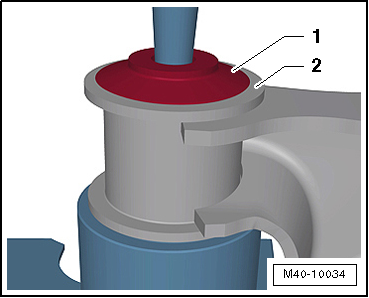

Press in bonded rubber bush until core of bush
-1- and hole in suspension link
-2- are flush. |
|
|
|
| – |
Press bush back slightly in the suspension link. |
| 3 - |
Thrust plate -VW 402- |
|
|
|

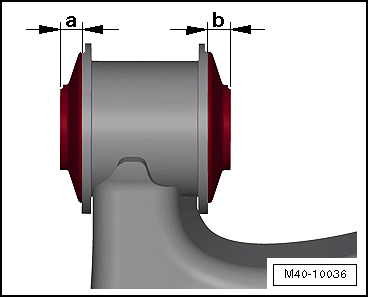

| The dimensions -a- and
-b- must be the same. |
| – |
Install lower suspension link
→ Chapter. |
|
|
|
