| Special tools and workshop equipment
required |
|
|
|
| |
Torque wrench -V.A.G 1331- |
| – |
Remove front seat
→ Chapter. |
| – |
Secure seat on seat repair stand
→ Chapter. |
| – |
Remove seat trim on tunnel side
→ Chapter. |
| – |
Remove seat trim on sill side
→ Chapter. |
|
|
Torque wrench -V.A.G 1331 |
| – |
Disconnect connectors of wiring harnesses leading to
backrest. |
| – |

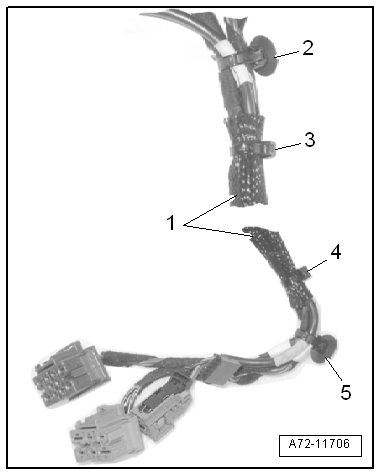

Unclip clips -2- and
-5- of wiring harness
-1- from seat pan. |
| – |
Release wiring harness -1-
together with braided sleeve from seat pan. |
| – |
To do this, remove all cable ties -3-
and -4-. |
| The wiring harness between coupling station and side airbag
is continuous. |
| – |
Thread wiring harness leading to side airbag out if braided
sleeve. |
| – |
To do this, remove cable ties -3-
and -4-. |
|
|
|
| Only for vehicles with entry assistance |
| – |

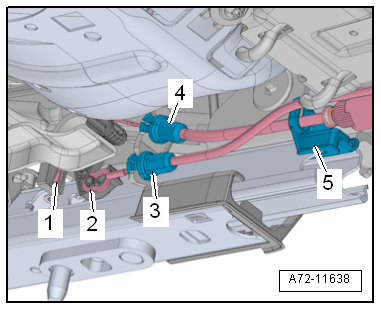

Detach Bowden cable support bracket
-3, 4- from retainer for entry assistance on seat pan. |
| – |
Unclip Bowden cables -1 and 2-
for entry assistance from seat rail release mechanism. |
| – |
Detach retainer -5- for Bowden
cable from seat rail. |
|
|
|
| Continued for all vehicles |
| – |

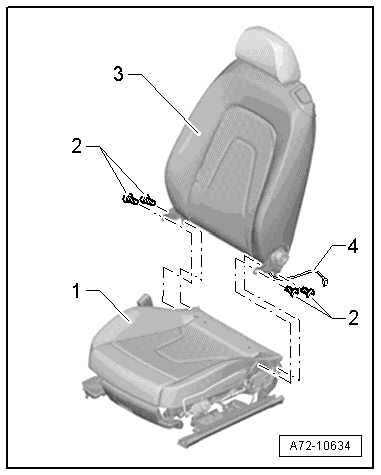

Fold backrest -3- forwards onto
seat pan -1-. |
| – |
Push seat pan padding to side. |
| – |
Carefully pull side airbag wiring harness
-4- out of seat pan. |
| Install in reverse order, but note the following: |
| – |
Renew any damaged cable ties and clips. |
| – |
Route wires in their original positions. |
| |
→ Chapter „Assembly overview - front seat“ |
| |
→ Chapter „Assembly overview - seat pan“ |
| |
→ Chapter „Assembly overview - front backrest“ |
|
|
|
