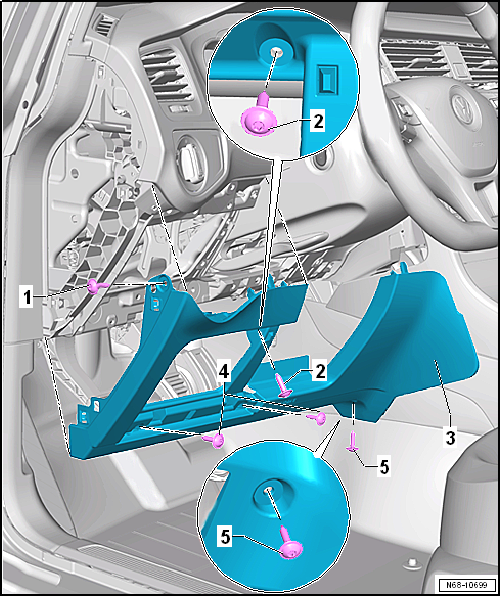

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - driver side dash panel cover
This assembly overview covers the Volkswagen Golf Mk7 driver-side dash panel cover, secured by five bolts each torqued to 1.5 Nm.
| 1 - | Bolt |
- 1.5 Nm
| 2 - | Bolt |
- 1.5 Nm
| 3 - | Driver side dash panel cover |
- Removing and installing → Chapter
| 4 - | Bolt |
- Qty. 2
- 1.5 Nm
| 5 - | Bolt |
- 1.5 Nm
Questions & answers
Assembly overview - driver side dash panel cover — Volkswagen Golf Mk7
What does the Golf Mk7 driver dash panel cover assembly show?
The cover and five mounting bolts (all 1.5 Nm).
