Volkswagen Golf Mk7 Service & Repair Manual: Overview of fitting locations - electrical and electronic components, electrically adjustable seat

This overview maps the electrical components on Volkswagen Golf Mk7 electrically adjustable seats: the rake adjustment motors -V243-/-V244- and the longitudinal adjuster motors, each cross-referenced to their assembly overview and removal chapter.

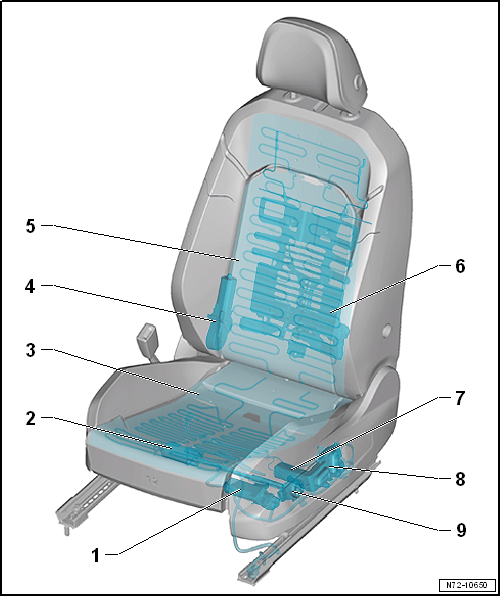

Overview of fitting locations - electrical and electronic components, electrically adjustable seat

1 -  Seat rake adjustment
  • Driver seat rake adjustment motor -V243
  • Front passenger seat rake adjustment motor -V244-
  • Assembly overview → Anchor
  • Removing and installing → Chapter
2 -  Seat longitudinal adjuster
  • Driver seat longitudinal adjustment motor -V28
  • Front passenger seat longitudinal adjustment motor -V31
  • Removing and installing → Chapter
3 -  Seat heating element
  • Heated seat cushion for driver seat -Z6
  • Heated seat cushion for front passenger seat -Z8
  • Depends on equipment
  • Removing and installing → Chapter
4 -  Backrest adjuster
  • Driver seat backrest adjustment motor -V45
  • Front passenger seat backrest adjustment motor -V46
  • Removing and installing → Chapter
5 -  Backrest heating element
  • Heated backrest for driver seat -Z7-
  • Heated backrest for front passenger seat -Z9
  • Depends on equipment
  • Removing and installing → Chapter
6 -  Lumbar support
  • Driver seat lumbar support longitudinal adjustment motor -V125
  • Driver seat lumbar support height adjustment motor -V129
  • Front passenger seat lumbar support longitudinal adjustment motor -V126
  • Front passenger seat lumbar support height adjustment motor -V130
  • Assembly overview → Anchor
  • Removing and installing → Chapter
7 -  Seat height adjuster
  • Driver seat height adjustment motor -V138
  • Front passenger seat height adjustment motor -V246
  • Assembly overview → Anchor.
  • Removing and installing → Chapter
8 -  Seat adjustment operating unit
  • Driver seat adjustment operating unit -E470
  • Front passenger seat adjustment operating unit -E471
  • Removing and installing → Chapter
9 -  Lumbar support adjustment switch
  • Driver seat lumbar support adjustment switch -E176
  • Front passenger seat lumbar support adjustment switch -E177
  • Removing and installing → Chapter
  • Removing and installing lumbar support → Chapter
