| Special tools and workshop equipment
required |
| – |
Remove noise insulation
→ General body repairs, exterior; Rep. gr.66. |
| – |
Remove sump upper part
→ Chapter. |
 Note
| The crank web of the respective cylinder must be positioned
so that the socket -T10545- can be inserted in the pressure
relief valve as close to vertical as possible. |
| Furthermore, the corners of the socket -T10545- and of the
pressure relief valve must engage well. |
| – |
Turn crankshaft via vibration damper securing bolt in
direction of engine rotation until the respective bolt is
accessible. |
|
|
|
| – |

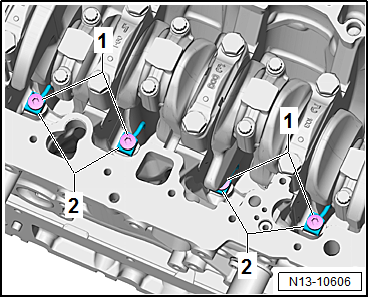

Unscrew pressure relief valve -1-
using socket -T10545-. |
| – |
Remove oil spray jets -2-. |
Risk of damage to oil spray jets caused by deformation.Do not bend oil
spray jets. |
|
|
| 1 - |
Pressure relief valve - 27 Nm |
| Installation position: align leading edge of oil spray jet
arrow with machined surface of cylinder block. |
| – |
Remove upper part of sump
→ Chapter. |
| – |
Install noise insulation
→ General body repairs, exterior; Rep. gr.66. |
|
|
|
