| Special tools and workshop equipment
required |
|
|
|
| |
|
Removal wedge -3409 |
| – |
If fitted, remove storage compartment
→ Chapter. |
| – |

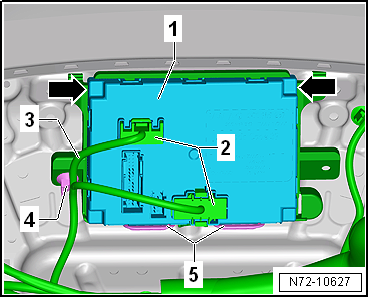

Unclip wiring harness -3- from
retainer. |
| – |
To do this, lever off cable retainer
-4- using removal wedge -3409-. |
| – |
Release connectors -2- and pull
them off. |
| – |
Release massage control unit -J740--1-
from retaining tabs -5-. |
| – |
Pull massage control unit -J740--1-
out of mountings -arrows-. |
| Install in reverse order, but note the following: |
| – |
Renew any damaged cable ties and clips. |
| – |
Route wires in their original positions. |
| |
→ Chapter „Assembly overview - front seat“ |
| |
→ Chapter „Assembly overview - seat pan“ |
| |
Assembly overview - storage compartment
→ Anchor |
|
|
|
Questions & answers
Removing and installing massage control unit -J740- — Volkswagen Golf Mk7
How do I remove the Golf Mk7 massage control unit -J740-?
Remove under-seat storage compartment if fitted. Use removal wedge -3409-, unclip the unit from under the seat and disconnect.
Note
Removal and installation are described for the left vehicle
side. Follow same instructions for the right side as
appropriate.
...
