| Special tools and workshop equipment
required |
|
|
|
| Height-adjustment of glass panel |
|
|

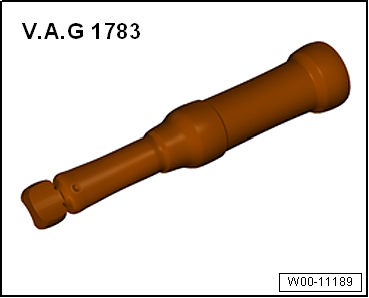

Torque wrench -V.A.G 1783- |
| – |
Loosen securing bolts for glass panel. |
| – |
Operate glass panel of panorama tilting roof so that it moves to
“open” position. |
| – |
Operate glass panel of panorama tilting roof so that it moves to
“closed” position. |
| – |

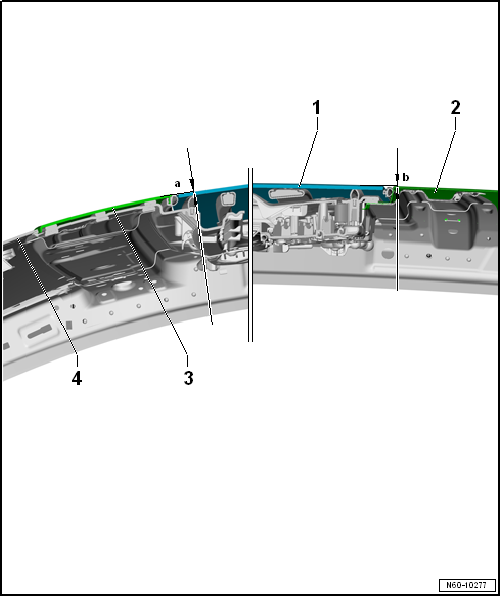

Adjust height of glass panel at front and rear on both sides as
follows: |
| -Dimension a- = 1 mm lower than roof
assembly frame -3-. |
| – |
Press the inner seal to one side. |
| – |
Tighten the front inside bolts. |
| -Dimension b- = 1 mm above roof profile
-2- |
| – |
Tighten the rear inside bolts. |
| – |
Open glass panel and tighten the rear bolts. |
Note
| |
To achieve the best possible optical appearance, ensure that
adjustments on left and right are uniform (symmetrical). |
| |
The glass panel should not be higher than the roof at any point
at the front or lower than the roof at any point at the rear. |
Questions & answers
Adjusting glass panel — Volkswagen Golf Mk7
How do I adjust the Golf Mk7 sunroof glass panel height?
Loosen the securing bolts, operate the panel to the adjusting position, set the height so the glass sits flush with the surrounding roof, and re-tighten.
Why does the Golf Mk7 sunroof glass need height adjustment?
After frame work or glass replacement, the panel may sit too high or too low relative to the roof line, causing wind noise or water leaks.
