Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - window regulator

This assembly overview covers the Volkswagen Golf Mk7 rear window regulator: motor -V26-/-V27- (its door control unit is separate from the motor), hexagon nuts (6 Nm, qty 2), and the regulator's connection to the door glass.

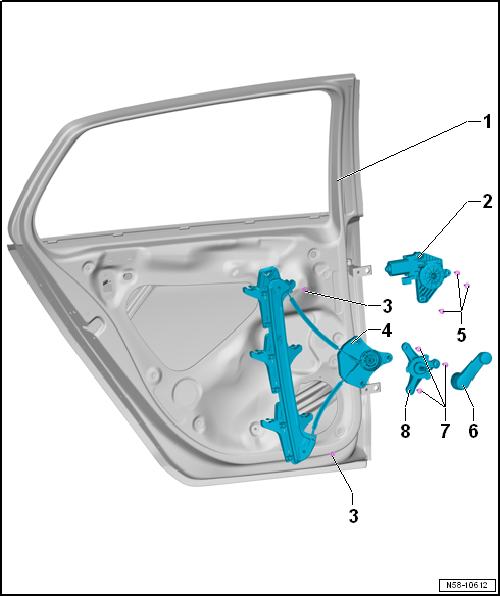

Assembly overview - window regulator

1 -  Front door
2 -  Rear window regulator motor -V26/V27-
  • The door control unit is installed in door separated from window regulator motor
  • Removing and installing → Chapter
3 -  Hexagon nut
  • Qty. 2
  • 6 Nm
4 -  Window regulator
  • Removing and installing → Chapter



5 -  Bolt
  • Qty. 3 for window regulator motor
  • 3 Nm
6 -  Window winder
  • Removing and installing → Chapter
7 -  Bolt
  • Qty. 3 for window winder mechanism
  • 3 Nm
8 -  Window winder mechanism
  • Removing and installing → Anchor
